Description

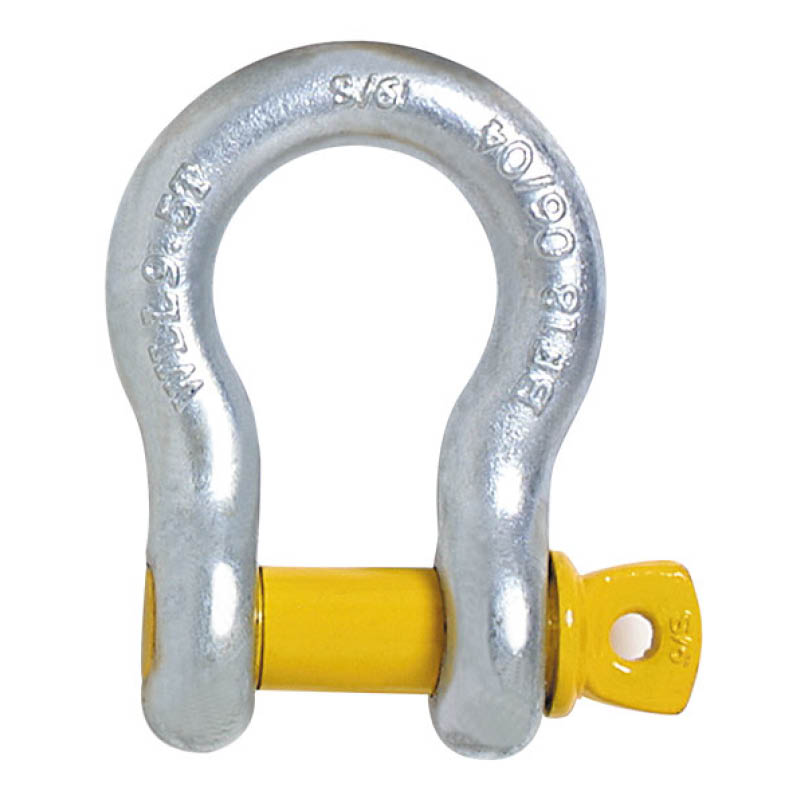

Beaver bow shackles are suitable for loads of 1000 to 8500kg, depending on the size selected. They adhere to Australian Standard AS 2741.
Features:
- Made from hot-dip galvanised steel for resistance to corrosion in outdoor environments
- Suitable for mining, construction and resource industry applications
- Adhere to Australian standard AS 2741
- Six sizes available to suit various working loads
- Colour coded screw pin for easy shackle selection
Beaver bow shackles – quick reference
| Code | Size | Specs | Colour | Qty |
| 242310M | 10 x 11mm, WLL 1000kg | HGD | violet | 1 |
| 242313M | 13 x 16mm, WLL 2000kg | HGD | green | 1 |
| 242316M | 16 x 19mm, WLL 3200kg | HGD | yellow | 1 |
| 242319M | 19 x 22mm, WLL 4700kg | HGD | grey | 1 |
| 242322M | 22 x 25mm, WLL 6500kg | HGD | brown | 1 |
| 242325M | 25 x 29mm, WLL 8500kg | HGD | blue | 4 |
