Description

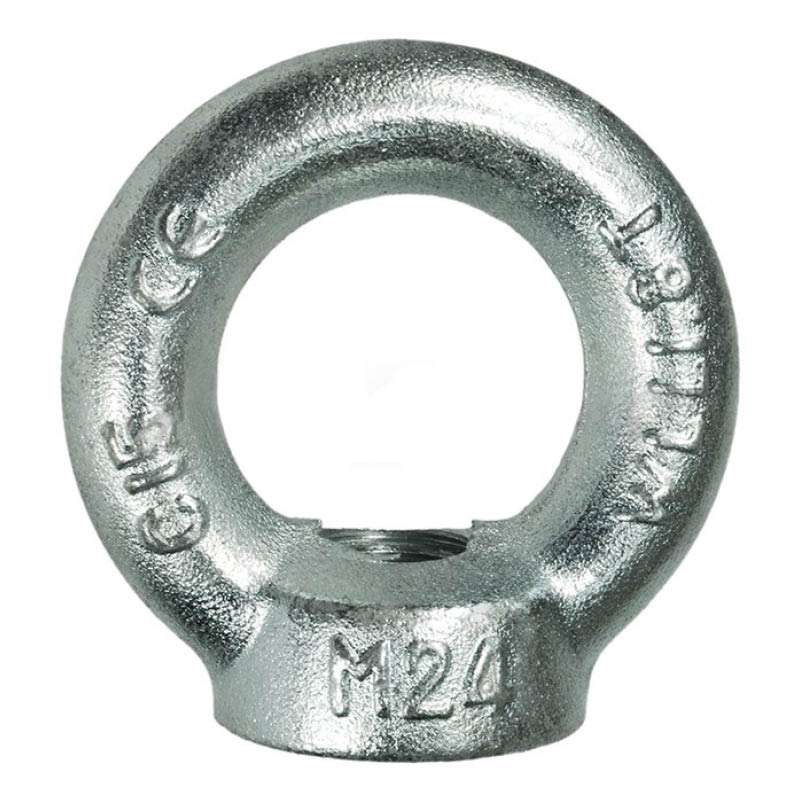

Eye nuts come internally threaded and are suitable for use with rated bolts to create removable lifting points. They are available in sizes M6 to M48.
Features:
- Each size has a corresponding working load limit. Ensure you select the appropriate sized eye nut for the job
- Can also be used with wire rope balustrading systems or for chain termination, among other applications
- Made from C15 carbon steel for increased hardness and strength, the zinc plating provides moderate resistance to corrosion
- Also available in hot dipped galvanised steel
- Conforms to standard DIN 582
Eye nuts – quick reference
| Code | Size | Specs | Qty |
| 602010HDG | M10, WLL 230kg | HDG | 50 |
| 602012HDG | M12, WLL 340kg | HDG | 25 |
| 602016HDG | M16, WLL 700kg | HDG | 25 |
| 602020HDG | M20, WLL 1200kg | HDG | 10 |
| 602006SS316 | M06, WLL 75kg | SS 316 | 20 |
| 602008SS316 | M08, WLL 140kg | SS 316 | 20 |
| 602010SS316 | M10, WLL 230kg | SS 316 | 20 |
| 602012SS316 | M12, WLL 340kg | SS 316 | 10 |
| 602016SS316 | M16, WLL 700kg | SS 316 | 5 |
| 602020SS316 | M20, WLL 1200kg | SS 316 | 5 |
| 602024SS316 | M24, WLL 1800kg | SS 316 | 2 |
| 602030SS316 | M30, WLL 3200kg | SS 316 | 2 |
| 602006 | M06, WLL 70kg | zinc | 1 |
| 602008 | M08, WLL 140kg | zinc | 1 |
| 602010 | M10, WLL 230kg | zinc | 1 |
| 602012 | M12, WLL 340kg | zinc | 1 |
| 602016 | M16, WLL 700kg | zinc | 1 |
| 602020 | M20, WLL 1200kg | zinc | 1 |
| 602022 | M22, WLL 1500kg | zinc | 1 |
| 602024 | M24, WLL 1800kg | zinc | 1 |
| 602027 | M27, WLL 2500kg | zinc | 1 |
| 602030 | M30, WLL 3600kg | zinc | 1 |
| 602036 | M36, WLL 5100kg | zinc | 1 |
| 602042 | M42, WLL 7000kg | zinc | 1 |
| 602048 | M48, WLL 8600kg | zinc | 1 |
| 6020ZD | M20, WLL 1200kg | zinc dichromate | 1 |
| 602020ZY | M20, WLL 1200kg | zinc – yellow/gold | 1 |
