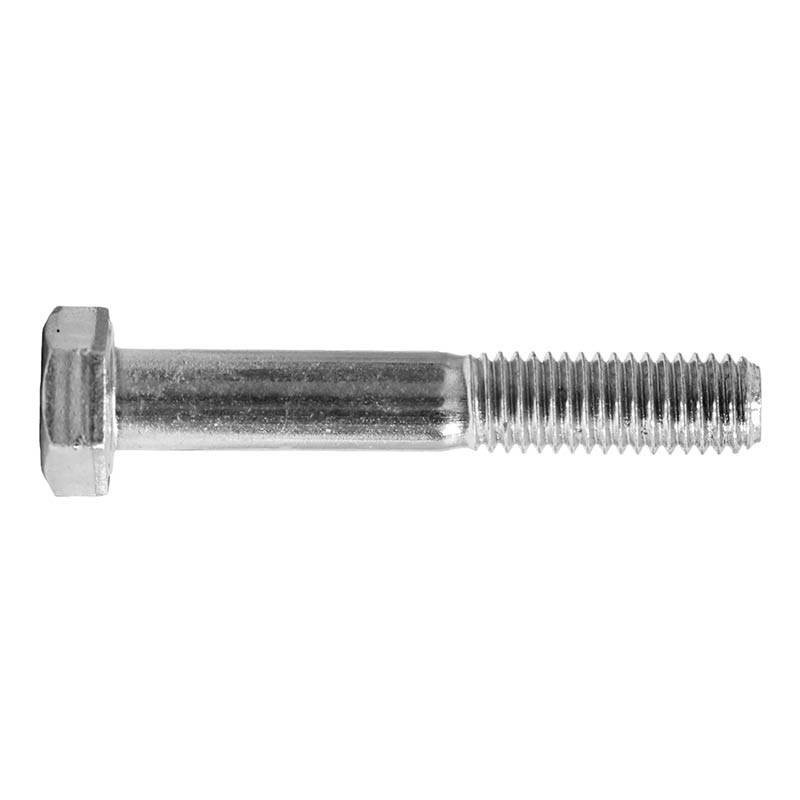

Hex head bolts – UNF imperial

$0.07$4.80

These imperial hex head bolts with unified fine pitch (UNF) thread are designed for use for joining. They can be used with a hexagon nut or nylon insert nut which then acts as a clamp on the material being fastened.

Clear
SKU: BHG5PF Categories: ,

Description

These imperial hex head bolts with unified fine pitch (UNF) thread are designed for use for joining. They can be used with a hexagon nut or nylon insert nut which then acts as a clamp on the material being fastened.

Features:

  • Unified fine pitch (UNF) imperial thread
  • They comply with Australian standard AS2465
  • Available in various sizes and materials

Hex head bolts – UNF thread – imperial – quick reference

Code

Size

Specs

Qty

BHG5PF0250100

06.35 x 25.40mm, 1/4 x 1″

plain

100

BHG5PF0250125

06.35 x 31.75mm, 1/4 x 1 1/4″

plain

200

BHG5PF0250175

06.35 x 44.45mm, 1/4 x 1 3/4″

plain

200

BHG5PF0250200

06.35 x 50.80mm, 1/4 x 2″

plain

200

BHG5PF0250225

06.35 x 57.15mm, 1/4 x 2 1/4″

plain

150

BHG5PF0250250

06.35 x 63.50mm, 1/4 x 2 1/2″

plain

150

BHG5PF0250350

06.35 x 88.90mm, 1/4 x 3 1/2″

plain

100

BHG5PF0250400

06.35 x 101.60mm, 1/4 x 4″

plain

100

BHG5PF0310175

07.94 x 31.75mm, 5/16 x 1 1/4″

plain

150

BHG5PF0310225

07.94 x 57.15mm, 5/16 x 2 1/4″

plain

150

BHG5PF0310350

07.94 x 88.90mm, 5/16 x 3 1/2″

plain

100

BHG5PF0310400

07.94 x 101.6mm, 5/16 x 4″

plain

100

BHG5PF0370100

09.53 x 25.40mm, 3/8 x 1″

plain

200

BHG5PF0370125

09.53 x 31.75mm, 3/8 x 1 1/4″

plain

200

BHG5PF0370150

09.53 x 38.10mm, 3/8 x 1 1/2″

plain

150

BHG5PF0370200

09.53 x 50.80mm, 3/8 x 2″

plain

100

BHG5PF0370250

09.53 x 63.50mm, 3/8 x 2 1/2″

plain

100

BHG5PF0370300

09.53 x 76.20mm, 3/8 x 3″

plain

100

BHG5PF0370350

09.53 x 88.90mm, 3/8 x 3 1/2″

plain

50

BHG5PF0370400

09.53 x 101.60mm, 3/8 x 4″

plain

50

BHG5PF0370500

09.53 x 127.00mm, 3/8 x 5″

plain

50

BHG5PF0370600

09.53 x 152.40mm, 3/8 x 6″

plain

50

BHG5PF037225

09.53 x 57.15mm, 3/8 x 2 1/4″

plain

100

BHG5PF0430150

11.11 x 38.10mm, 7/16 x 1 1/2″

plain

100

BHG5PF0430200

11.11 x 50.80mm, 7/16 x 2″

plain

100

BHG5PF0430300

11.11 x 76.20mm, 7/16 x 3″

plain

75

BHG5PF0430400

11.11 x 101.60mm, 7/16 x 4″

plain

50

BHG5PF0870300

22.22 x 76.20mm, 7/8 x 3″

plain

10

BHG5PF0870350

22.22 x 88.90mm, 7/8 x 3 1/2″

plain

10

BHG5PF0870500

22.22 x 127.00mm, 7/8 x 5″

plain

10

BHG5PFP111002

11.11 x 25.40mm, 7/16 x 1″

plain

100

BHG5PFP112502

11.11 x 63.50mm, 7/16 x 2 1/2″

plain

75

BHG5PFZ025075

06.35 x 19.05mm, 1/4 x 3/4″

zinc

200

BHG5PFZ025100

06.35 x 25.40mm, 1/4 x 1″

zinc

200

BHG5PFZ025150

06.35 x 38.10mm, 1/4 x 1 1/2″

zinc

200

BHG5PFZ025250

06.35 x 63.50mm, 1/4 x 2 1/2″

zinc

150

BHG5PFZ031075

07.94 x 19.05mm, 5/16 x 3/4″

zinc

200

BHG5PFZ031100

07.94 x 25.40mm, 5/16 x 1″

zinc

200

BHG5PFZ031125

07.94 x 31.75mm, 5/16 x 1 1/4″

zinc

200

BHG5PFZ031150

07.94 x 38.10mm, 5/16 x 1 1/2″

zinc

200

BHG5PFZ037075

09.53 x 19.05mm, 3/8 x 3/4″

zinc

200

BHG5PFZ037100

09.53 x 25.40mm, 3/8 x 1″

zinc

200

BHG5PFZ037125

09.53 x 31.75mm, 3/8 x 1 1/4″

zinc

200

BHG5PFZ037150

09.53 x 38.10mm, 3/8 x 1 1/2″

zinc

150

BHG5PFZ037200

09.53 x 50.80mm, 3/8 x 2″

zinc

100

BHG5PFZ037225

09.53 x 57.15mm, 3/8 x 2 1/4″

zinc

100

BHG5PFZ037300

09.53 x 76.20mm, 3/8 x 3″

zinc

100

BHG5PFZ037350

09.53 x 88.90mm, 3/8 x 3 1/2″

zinc

50

BHG5PFZ037400

09.53 x 101.60mm, 3/8 x 4″

zinc

50

BHG5PFZ101752

09.53 x 44.45mm, 3/8 x 1 3/4″

zinc

150

Additional information

Size

06.35 x 101.60mm, 1/4 x 4", 06.35 x 19.05mm, 1/4 x 3/4", 06.35 x 25.40mm, 1/4 x 1", 06.35 x 31.75mm, 1/4 x 1 1/4", 06.35 x 38.10mm, 1/4 x 1 1/2", 06.35 x 44.45mm, 1/4 x 1 3/4", 06.35 x 50.80mm, 1/4 x 2", 06.35 x 57.15mm, 1/4 x 2 1/4", 06.35 x 63.50mm, 1/4 x 2 1/2", 06.35 x 88.90mm, 1/4 x 3 1/2", 07.94 x 101.6mm, 5/16 x 4", 07.94 x 19.05mm, 5/16 x 3/4", 07.94 x 25.40mm, 5/16 x 1", 07.94 x 31.75mm, 5/16 x 1 1/4", 07.94 x 38.10mm, 5/16 x 1 1/2", 07.94 x 57.15mm, 5/16 x 2 1/4", 07.94 x 88.90mm, 5/16 x 3 1/2", 09.53 x 101.60mm, 3/8 x 4", 09.53 x 127.00mm, 3/8 x 5", 09.53 x 152.40mm, 3/8 x 6", 09.53 x 19.05mm, 3/8 x 3/4", 09.53 x 25.40mm, 3/8 x 1", 09.53 x 31.75mm, 3/8 x 1 1/4", 09.53 x 38.10mm, 3/8 x 1 1/2", 09.53 x 44.45mm, 3/8 x 1 3/4", 09.53 x 50.80mm, 3/8 x 2", 09.53 x 57.15mm, 3/8 x 2 1/4", 09.53 x 63.50mm, 3/8 x 2 1/2", 09.53 x 76.20mm, 3/8 x 3", 09.53 x 88.90mm, 3/8 x 3 1/2", 11.11 x 101.60mm, 7/16 x 4", 11.11 x 25.40mm, 7/16 x 1", 11.11 x 38.10mm, 7/16 x 1 1/2", 11.11 x 50.80mm, 7/16 x 2", 11.11 x 63.50mm, 7/16 x 2 1/2", 11.11 x 76.20mm, 7/16 x 3", 22.22 x 127.00mm, 7/8 x 5", 22.22 x 76.20mm, 7/8 x 3", 22.22 x 88.90mm, 7/8 x 3 1/2"

Material

plain steel, zinc plated steel – clear/silver
