Description

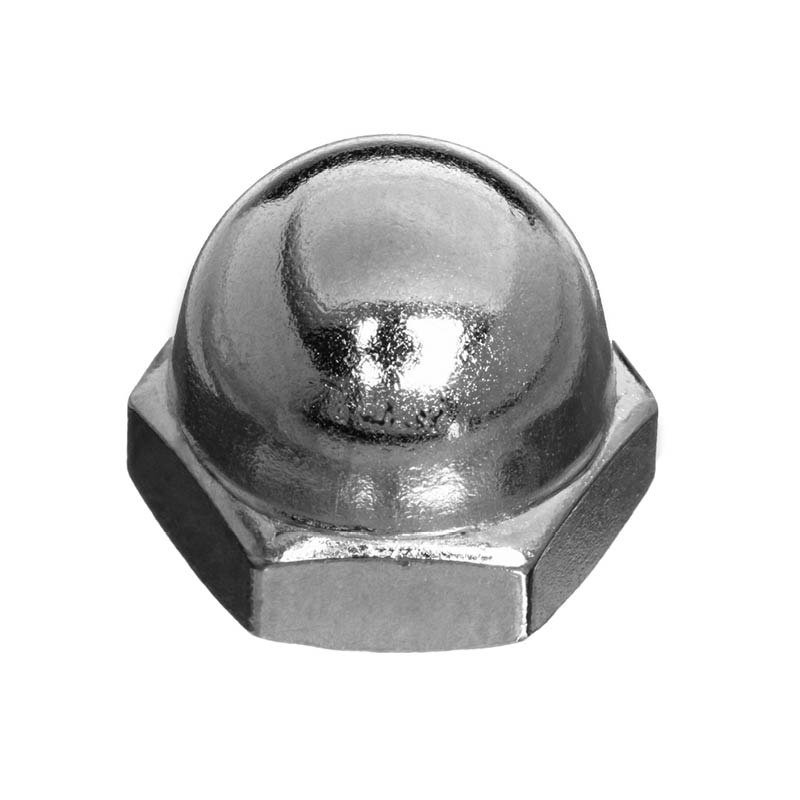

Domed acorn nuts can be used to protect or hide threads on the end of the bolt. They are available in brass, chrome, hot dipped galvanised steel, or stainless steel grade 304 or 316.
Features:
- Use for a more refined appearance
- Available in sizes M3 to M36
- Suitable for use indoors and outdoors. Choose stainless steel for highly corrosive environments
Domed acorn nuts – quick reference
| Code | Size | Specs | Qty |
| NAC304SSM03HP | M03 | SS 304 | 100 |
| NAC304SSM04HP | M04 | SS 304 | 100 |
| NAC304SSM05HP | M05 | SS 304 | 100 |
| NAC304SSM06HP | M06 | SS 304 | 100 |
| NAC304SSM08HP | M08 | SS 304 | 100 |
| NAC304SSM10HP | M10 | SS 304 | 100 |
| NAC304SSM12HP | M12 | SS 304 | 50 |
| NAC304SSM14HP | M14 | SS 304 | 50 |
| NAC304SSM16HP | M16 | SS 304 | 50 |
| NAC316SSM04HP | M04 | SS 316 | 100 |
| NAC316SSM05 | M05 | SS 316 | 100 |
| NAC316SSM06HP | M06 | SS 316 | 100 |
| NAC316SSM08HP | M08 | SS 316 | 100 |
| NAC316SSM10HP | M10 | SS 316 | 100 |
| NAC316SSM12HP | M12 | SS 316 | 50 |
| NAC316SSM16HP | M16 | SS 316 | 50 |
| NAC316SSM20HP | M20 | SS 316 | 25 |
| NAC316SSM24HP | M24 | SS 316 | 25 |
| NAC316SSM30HP | M30 | SS 316 | 10 |
| NAC316SSM36HP | M36 | SS 316 | 10 |
| NACBRM05 | M05 | brass | 100 |
| NACBRM06 | M06 | brass | 100 |
| NACBRM08 | M08 | brass | 100 |
| NACBRM10 | M10 | brass | 100 |
| NACBRM12 | M12 | brass | 25 |
| NACBRM16 | M16 | brass | 25 |
| NACCPM04 | M04 | chrome | 200 |
| NACCPM05 | M05 | chrome | 200 |
| NACCPM06 | M06 | chrome | 200 |
| NACCPM08 | M08 | chrome | 200 |
| NACCPM10 | M10 | chrome | 100 |
| NACCPM12 | M12 | chrome | 100 |
| NACCPM16 | M16 | chrome | 50 |
| NACGALM08 | M08 | HGD | 200 |
| NACGALM10 | M10 | HGD | 100 |
| NACGALM12 | M12 | HGD | 100 |
| NACGALM16 | M16 | HGD | 25 |
| NACGALM20 | M20 | HGD | 25 |
| NACGALM24 | M24 | HGD | 20 |
| NACGALM30 | M30 | HGD | 10 |
| NACGALM36 | M36 | HGD | 5 |
