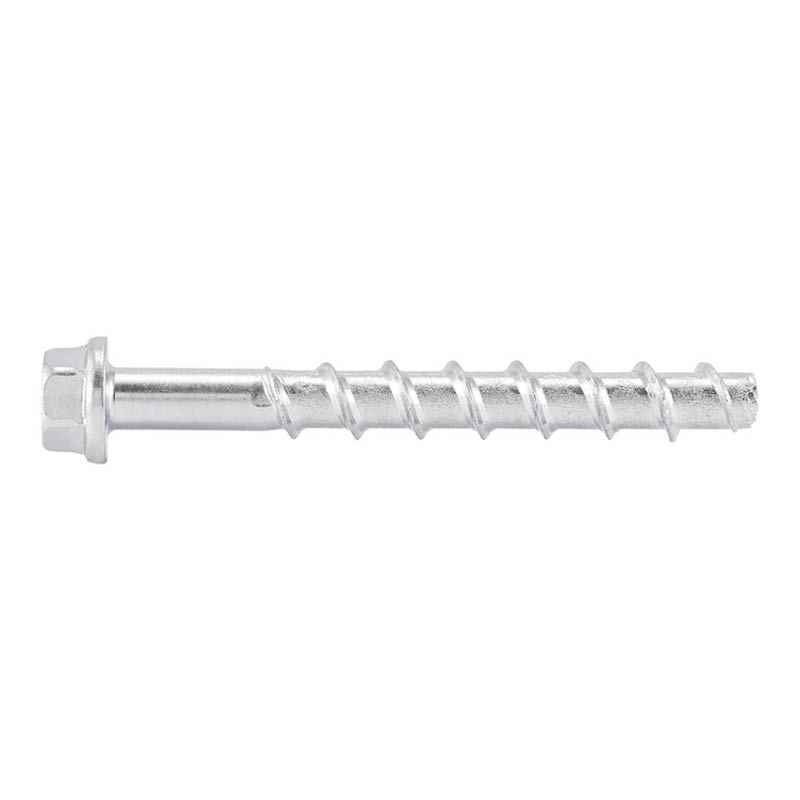

Screw bolt anchors - hex flange head - fire rated & seismic C1 & C2 photo

Screw bolt anchors – hex flange head – seismic

*Request Quote*

These screw bolt anchors have a hex flange head and are seismic certified. Designed for anchoring into base substrates such as brick, concrete, block, marble and stone.

SKU: SXTB Categories: , Tag:

Description

These screw bolt anchors have a hex flange head and are seismic certified. Designed for anchoring into base substrates such as brick, concrete, block, marble and stone.

Features:

  • Choose from a wide variety of sizes to suit most applications
  • Available in ceramic coated steel – C1 seismic, ceramic coated steel – C2 seismic, galvanised steel, hot-dip galvanised steel – C1 & C2 seismic, hot-dip galvanised steel – C1 seismic, stainless steel – grade 316 – C1 seismic, zinc plated steel – C1 & C2 seismic, zinc plated steel – C1 seismic, zinc plated steel – C2 seismic and zinc plated steel – yellow/gold
  • Fast and simple installation by screwing into the concrete for immediate use with medium to heavy loads
  • These are AS5216:2021 compliant for cracked concrete as well as being fire rated and seismic certified

screw bolt anchors hex flange head seismic – quick reference

Code Size Specs Qty
SXTB06045CC1 M06 x 45mm CER-C1 seismic 100
SXTB06060CC1 M06 x 60mm CER-C1 seismic 100
SXTB06080CC1 M06 x 80mm CER-C1 seismic 100
SXTB06100CC1 M06 x 100mm CER-C1 seismic 100
SXTB08065CC2 M08 x 65mm CER-C2 seismic 100
SXTB08075CC2 M08 x 75mm CER-C2 seismic 100
SXTB08110CC2 M08 x 110mm CER-C2 seismic 100
SXTB10100CC2 M10 x 100mm CER-C2 seismic 50
SXTB10120CC2 M10 x 120mm CER-C2 seismic 50
SXTB10140CC2 M10 x 140mm CER-C2 seismic 20
SXTB12110CC2 M12 x 110mm CER-C2 seismic 50
SXTB12130CC2 M12 x 130mm CER-C2 seismic 20
SXTB12150CC2 M12 x 150mm CER-C2 seismic 20
SXTB06045G M06 x 45mm HDG-C1 seismic 100
SXTB06050G M06 x 50mm HDG-C1 seismic 100
SXTB06060G M06 x 60mm HDG-C1 seismic 100
SXTB06075G M06 x 75mm HDG-C1 seismic 100
SXTB06100G M06 x 100mm HDG-C1 seismic 100
SXTB08055G M08 x 55mm HDG – C1/C2 100
SXTB08060G M08 x 60mm HDG – C1/C2 100
SXTB08070G M08 x 70mm HDG – C1/C2 100
SXTB08075G M08 x 75mm HDG – C1/C2 100
SXTB08100G M08 x 100mm HDG – C1/C2 100
SXTB08140G M08 x 140mm HDG – C1/C2 25
SXTB10090G M10 x 90mm HDG – C1/C2 50
SXTB10100G M10 x 100mm HDG – C1/C2 50
SXTB10120G M10 x 120mm HDG – C1/C2 50
SXTB10150G M10 x 150mm HDG – C1/C2 25
SXTB10200G M10 x 200mm HDG – C1/C2 25
SXTB12120G M12 x 120mm HDG – C1/C2 25
SXTB12150G M12 x 150mm HDG – C1/C2 25
SXTB12200G M12 x 200mm HDG – C1/C2 20
SXTB14130G M14 x 130mm HDG – C1/C2 25
SXTB14150G M14 x 150mm HDG – C1/C2 25
SXTB16100G M16 x 100mm Gal – ETA 15
SXTB16150G M16 x 150mm Gal – ETA 15
SXTB16200G M16 x 200mm Gal – ETA 10
SXTB18150G M18 x 150mm HDG-C1/C2 15
SXTB18170G M18 x 170mm HDG-C1/C2 15
SXTB18200G M18 x 200mm HDG-C1/C2 10
SXTB18300G M18 x 300mm HDG-C1/C2 10
SXTB06045SS M06 x 45mm SS 316 – C1 100
SXTB06050SS M06 x 50mm SS 316 – C1 100
SXTB06060SS M06 x 60mm SS 316 – C1 100
SXTB06075SS M06 x 75mm SS 316 – C1 100
SXTB08055SS M08 x 55mm SS 316 – C1 100
SXTB08070SS M08 x 70mm SS 316 – C1 80
SXTB08100SS M08 x 100mm SS 316 – C1 100
SXTB10060SS M10 x 60mm SS 316 – C1 50
SXTB10090SS M10 x 90mm SS 316 – C1 50
SXTB10100SS M10 x 100mm SS 316 – C1 50
SXTB10110SS M10 x 110mm SS 316 – C1 50
SXTB10120SS M10 x 120mm SS 316 – C1 50
SXTB12080SS M12 x 80mm SS 316 – C1 50
SXTB12100SS M12 x 100mm SS 316 – C1 50
SXTB12120SS M12 x 120mm SS 316 – C1 25
SXTB12150SS M12 x 150mm SS 316 – C1 25
SXTB06045ZC1 M06 x 45mm zinc – C1 seismic 100
SXTB06050ZC1 M06 x 50mm zinc – C1 seismic 100
SXTB06060ZC1 M06 x 60mm zinc – C1 seismic 100
SXTB06075ZC1 M06 x 75mm zinc – C1 seismic 100
SXTB06080ZC1 M06 x 80mm zinc – C1 seismic 100
SXTB06100ZC1 M06 x 100mm zinc – C1 seismic 100
SXTB08065ZC2 M08 x 65mm zinc – C2 seismic 100
SXTB08075ZC2 M08 x 75mm zinc – C2 seismic 100
SXTB08110ZC2 M08 x 110mm zinc – C2 seismic 100
SXTB10100ZC2 M10 x 100mm zinc – C2 seismic 50
SXTB10120ZC2 M10 x 120mm zinc – C2 seismic 50
SXTB10140ZC2 M10 x 140mm zinc – C2 seismic 50
SXTB12110ZC2 M12 x 110mm zinc – C2 seismic 50
SXTB12150ZC2 M12 x 150mm zinc – C2 seismic 20
SXTB08055 M08 x 55mm zinc – C1/C2 seismic 100
SXTB08060 M08 x 60mm zinc – C1/C2 seismic 100
SXTB08070 M08 x 70mm zinc – C1/C2 seismic 100
SXTB08075 M08 x 75mm zinc – C1/C2 seismic 100
SXTB08100 M08 x 100mm zinc – C1/C2 seismic 100
SXTB08140 M08 x 140mm zinc – C1/C2 seismic 25
SXTB10090 M10 x 90mm zinc – C1/C2 seismic 50
SXTB10100 M10 x 100mm zinc – C1/C2 seismic 50
SXTB10120 M10 x 120mm zinc – C1/C2 seismic 50
SXTB10150 M10 x 150mm zinc – C1/C2 seismic 25
SXTB10200 M10 x 200mm zinc – C1/C2 seismic 25
SXTB12120 M12 x 120mm zinc – C1/C2 seismic 25
SXTB12150 M12 x 150mm zinc – C1/C2 seismic 25
SXTB12200 M12 x 200mm zinc – C1/C2 seismic 20
SXTB14130 M14 x 130mm zinc – C1/C2 seismic 25
SXTB14150 M14 x 150mm zinc – C1/C2 seismic 25
SXTB16100 M16 x 100mm zinc – yellow/gold 15
SXTB16150 M16 x 150mm zinc – yellow/gold 15
SXTB16200 M16 x 200mm zinc – yellow/gold 10
SXTB18170 M18 x 170mm zinc – C1/C2 seismic 15
SXTB18200 M18 x 200mm zinc – C1/C2 seismic 10
SXTB18300 M18 x 300mm zinc – C1/C2 seismic 10

Additional information

Size

-, M06 x 100mm, M06 x 45mm, M06 x 50mm, M06 x 60mm, M06 x 75mm, M06 x 80mm, M08 x 100mm, M08 x 110mm, M08 x 140mm, M08 x 55mm, M08 x 60mm, M08 x 65mm, M08 x 70mm, M08 x 75mm, M10 x 100mm, M10 x 110mm, M10 x 120mm, M10 x 140mm, M10 x 150mm, M10 x 200mm, M10 x 60mm, M10 x 90mm, M12 x 100mm, M12 x 110mm, M12 x 120mm, M12 x 130mm, M12 x 150mm, M12 x 200mm, M12 x 80mm, M14 x 130mm, M14 x 150mm, M16 x 100mm, M16 x 150mm, M16 x 200mm, M18 x 150mm, M18 x 170mm, M18 x 200mm, M18 x 300mm
Material

-, ceramic coated steel – C1 seismic, ceramic coated steel – C2 seismic, hot-dip galvanised steel – C1 & C2 seismic, hot-dip galvanised steel – C1 seismic, stainless steel – grade 316 – C1 seismic, zinc plated steel – C1 & C2 seismic, zinc plated steel – C1 seismic, zinc plated steel – C2 seismic, galvanised steel, zinc plated steel – yellow/gold

Downloads

Technical data sheet
