Description

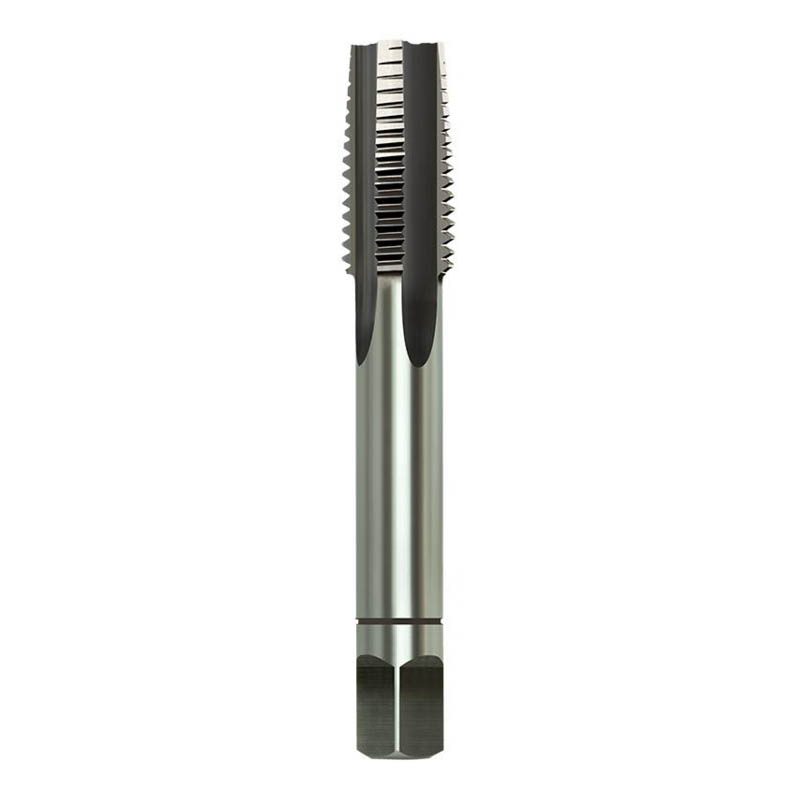

Alpha coarse taper taps are designed for production work, machine and hand operation applications. They are made to be used as the starting tap in high rigor or demanding holes.
Features:
- They have a single ring on the shaft near the driving square making them easily identifiable
- Made from 2N tolerance for optimal thread fit
- Suitable for use in aluminium, copper, steel and brass
- Designed for production work, machine and hand operation use
Coarse taper taps – quick reference
|
Code |
Size |
Qty |
|
MCHT020 |
M02 x 0.40mm |
1 |
|
MCHT025 |
M02.5 x 0.45mm |
1 |
|
MCHT030 |
M03 x 0.50mm |
1 |
|
MCHT035 |
M03.5 x 0.60mm |
1 |
|
MCHT040 |
M04 x 0.70mm |
1 |
|
MCHT045 |
M04.5 x 0.75mm |
1 |
|
MCHT050 |
M05 x 0.8mm |
1 |
|
MCHT060 |
M06 x 1.00mm |
1 |
|
MCHT070 |
M07 x 1.00mm |
1 |
|
MCHT080 |
M08 x 1.25mm |
1 |
|
MCHT090 |
M09 x 1.25mm |
1 |
|
MCHT100 |
M10 x 1.50mm |
1 |
|
MCHT120 |
M12 x 1.75mm |
1 |
|
MCHT140 |
M14 x 2.0mm |
1 |
|
MCHT160 |
M16 x 2.0mm |
1 |
|
MCHT180 |
M18.5 x 2.50mm |
1 |
|
MCHT200 |
M20 x 2.50mm |
1 |
|
MCHT220 |
M22 x 2.50mm |
1 |
|
MCHT240 |
M24 x 3.00mm |
1 |
|
MCHT300 |
M30 x 3.50mm |
1 |
|
MCHT330 |
M33 x 3.50mm |
1 |
|
MCHT360 |
M36 x 4.00mm |
1 |
