Description

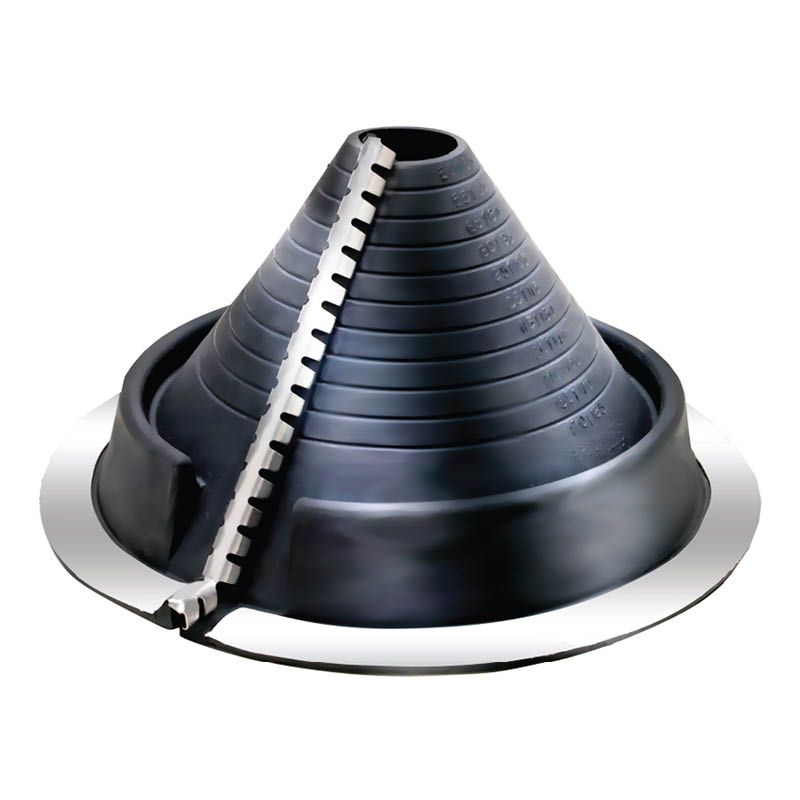

This Aztec Masterflash universal retrofit pipe flashing features a wraparound design with an interlocking gripper which is suitable for retrofitting on metal roofs.
Features:
- Seal pipes onto metal roofs using an interlocking gripper
- Soft, malleable aluminium base conforms to the shape of the roof for a perfect fit
- Flashing is made from EPDM rubber for a water tight seal around the pipe or silicone
- Resistant to weathering and UV light
- Available in nine sizes
Aztec Masterflash universal retrofit pipe flashing – quick reference
|
Code |
Size |
Specs |
Colour |
Qty |
|
MFRF1B |
No 1, 19 – 69mm p, 160mm b |
EPDM |
black |
10 |
|
MFRF1G |
No 1, 19 – 69mm p, 160mm b |
EPDM |
grey |
10 |
|
MFRF1S |
No 1, 19 – 69mm p, 160mm b |
silicone |
red |
10 |
|
MFRF2B |
No 2, 50 – 184mm p, 273mm b |
EPDM |
black |
10 |
|
MFRF2G |
No 2, 50 – 184mm p, 273mm b |
EPDM |
grey |
10 |
|
MFRF2S |
No 2, 50 – 184mm p, 273mm b |
silicone |
red |
10 |
|
MFRF3B |
No 3, 95 – 254mm p, 368mm b |
EPDM |
black |
10 |
|
MFRF3G |
No 3, 95 – 254mm p, 368mm b |
EPDM |
grey |
10 |
|
MFRF3S |
No 3, 95 – 254mm p, 368mm b |
silicone |
red |
10 |
Square base flashing is also available. You can browse our full range of pipe flashing here.
