Description

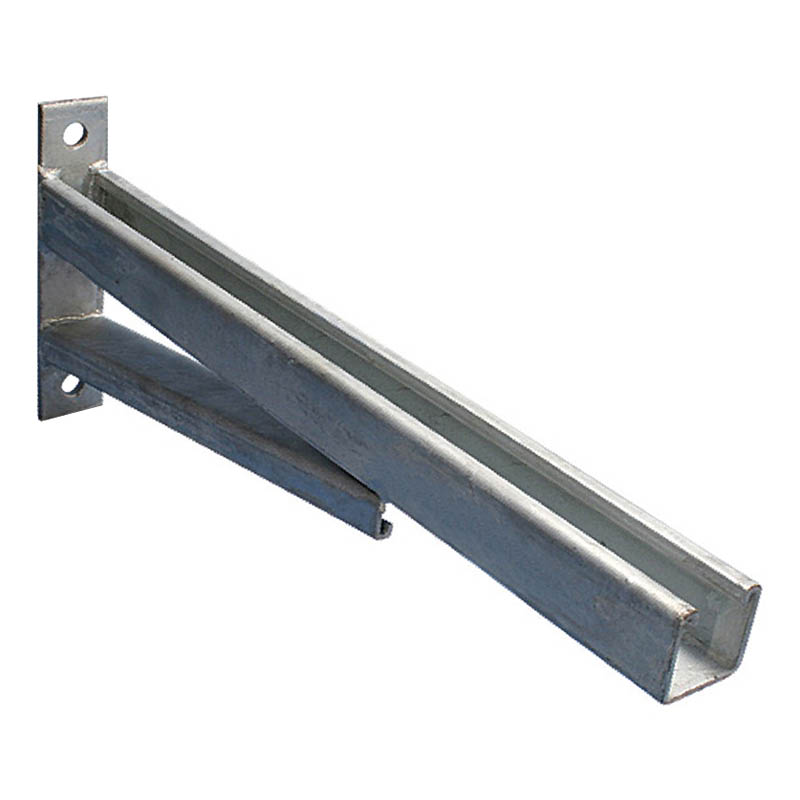

Braced cantilever brackets are available in hot-dip galvanised steel or grade 316 stainless steel. Choose 300mm, 450mm, 500mm, 600mm, 650mm, 750mm, 900mm, 1080mm or 1150mm in length.
Features:
- Diagonal brace for load supporting strength
- Two 14mm holes for mounting against a wall
- Come in hot-dip galvanised steel which is suitable for most conditions or grade 316 stainless steel for corrosive environments such as coastal or industrial locations
Braced cantilever brackets – quick reference
| Code | Size | Specs | Qty |
| CB40300 | 300mm | HGD | 1 |
| CB40450 | 450mm | HGD | 1 |
| CB40500 | 500mm | HGD | 1 |
| CB40600 | 600mm | HGD | 1 |
| CB40750 | 750mm | HGD | 1 |
| CB40900 | 900mm | HGD | 1 |
| CB401080 | 1080mm | HDG | 1 |
| CB41150 | 1150mm | HGD | 1 |
| CB40300SS | 300mm | SS 316 | 1 |
| CB40450SS | 450mm | SS 316 | 1 |
| CB40600SS | 600mm | SS 316 | 1 |
| CB40650SS | 650mm | SS 316 | 1 |
| CB40750SS | 750mm | SS 316 | 1 |
| CB40900SS | 900mm | SS 316 | 1 |
This product is sometimes referred to as a wall bracket or angle bracket.Unbraced cantilever brackets are also available.
