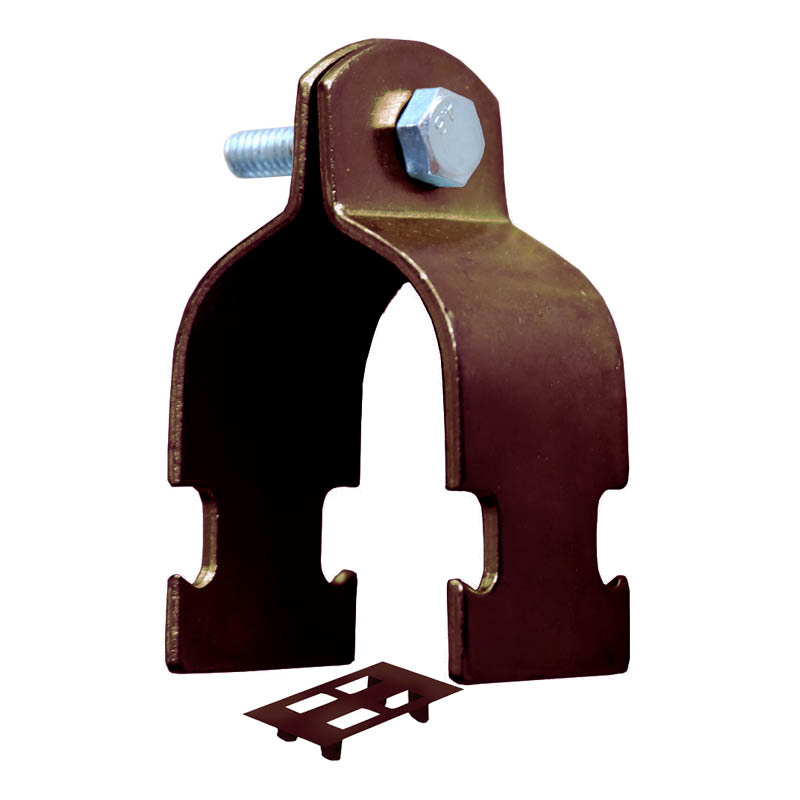

Channel clips – 2 piece clamps with barrier strips – for copper pipe

Name: Channel clips - 2 piece clamps with barrier strips - for copper pipe
SKU: FM133
Availability: InStock

*Request Quote*

These channel clips are made from polyester powder coated steel. They come with barrier strips to prevent copper pipe from contacting galvanised channel.

Size

Material

Clear

SKU: FM133 Categories: Cable/Pipe Clips & Clamps, Channel Clips

Description

These channel clips are made from polyester powder coated steel. They come with barrier strips to prevent copper pipe from contacting galvanised channel.

Features:

Coloured brown to match copper pipes
Polyester powder coating prevents direct copper to steel contact and provides additional resistance to corrosion
Available in a wide range of sizes to suit most applications – DN 15 to DN 250

Channel clips with barrier strips – quick reference

Code	Size	Specs	Colour	Qty
FM133-015	DN 015 copper p, 12.7mm OD	powder coated	brown	100
FM133-020	DN 020 copper p, 19.0mm OD	powder coated	brown	100
FM133-025	DN 025 copper p, 25.4mm OD	powder coated	brown	100
FM133-032	DN 032 copper p, 31.8mm OD	powder coated	brown	100
FM133-038	DN 040 copper p, 38.1mm OD	powder coated	brown	100
FM133-051	DN 050 copper p, 51.2mm OD	powder coated	brown	25
FM133-064	DN 065 copper p, 63.5mm OD	powder coated	brown	25
FM133-076	DN 080 copper p, 76.2mm OD	powder coated	brown	25
FM133-102	DN 100 copper p, 102mm OD	powder coated	brown	25
FM133-127	DN 125 copper p, 127mm OD	powder coated	brown	25
FM133-152	DN 150 copper p, 152mm OD	powder coated	brown	25
FM133-203	DN 200 copper p, 203mm OD	powder coated	brown	20
FM133-252	DN 250 copper p, 254mm OD	powder coated	brown	20

Additional information

Size	DN 015 copper pipe, 12.7mm outside diameter, DN 020 copper pipe, 19.0mm outside diameter, DN 025 copper pipe, 25.4mm outside diameter, DN 032 copper pipe, 31.8mm outside diameter, DN 040 copper pipe, 38.1mm outside diameter, DN 050 copper pipe, 51.2mm outside diameter, DN 065 copper pipe, 63.5mm outside diameter, DN 080 copper pipe, 76.2mm outside diameter, DN 100 copper pipe, 102mm outside diameter, DN 125 copper pipe, 127mm outside diameter, DN 150 copper pipe, 152mm outside diameter, DN 200 copper pipe, 203mm outside diameter, DN 250 copper pipe, 254mm outside diameter
Material	powder coated steel
Colour	brown
