Rivets – dome head – open – painted

Name: Rivets - dome head - open - painted
SKU: 73PAS
Availability: InStock

*Request Quote*

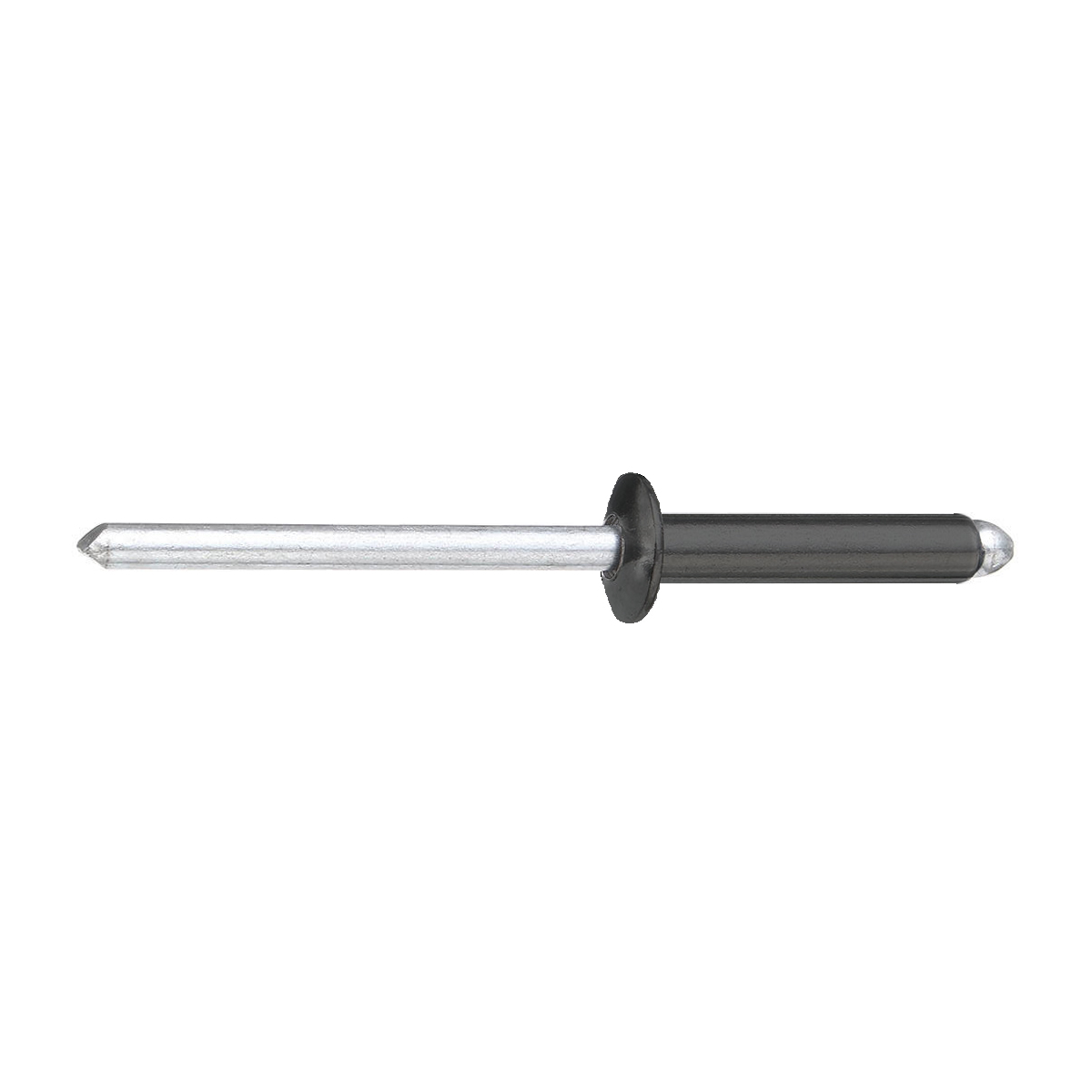

These painted rivets have a dome head and are made from aluminium/steel. They are available in the classic and contemporary Colorbond® colours.

Size

Colour

Clear

SKU: 73PAS Categories: Nails, Staples & Rivets, Rivets Tag: Building

Description

These painted rivets have a dome head and are made from aluminium/steel. They are available in the classic and contemporary Colorbond® colours.

Features:

Available in both classic and contemporary Colorbond® colours
Lightweight design with a truss head
Resistant to corrosion

Painted rivets – quick reference

Code	Size	Specs	Colour	Qty
73PAS43-BS	#4-03, 3.2 x 8.6mm	AL body, zinc stem	basalt	1000
73PAS44-BS	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	basalt	1000
73PAS54-BS	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	basalt	1000
73PAS44-BGM	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	blue gum	1000
73PAS43-BU	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	bushland	1000
73PAS44-BU	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	bushland	1000
73PAS412-BU	#4-12, 3.2 x 23.3mm	AL body, Zinc stem	bushland	500
73PAS43-CC	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	classic cream	1000
73PAS44-CC	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	classic cream	1000
73PAS54-CC	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	classic cream	1000
73PAS43-CG	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	cottage green	1000
73PAS44-CG	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	cottage green	1000
73PAS54-CG	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	cottage green	1000
73PAS43-CO	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	cove	1000
73PAS44-CO	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	cove	1000
73PAS54-CO	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	cove	1000
73PAS43-DO	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	deep ocean	1000
73PAS44-DO	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	deep ocean	1000
73PAS412-DO	#4-12, 3.2 x 23.3mm	AL body, Zinc stem	deep ocean	500
73PAS54-DO	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	deep ocean	1000
73PAS42-DW	#4-02, 3.2 x 6.4mm	AL body, Zinc stem	dover white	1000
73PAS43-DW	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	dover white	1000
73PAS44-DW	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	dover white	1000
73PAS46-DW	#4-06, 3.2 x 13.4mm	AL body, Zinc stem	dover white	1000
73PAS54-DW	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	dover white	1000
73PAS55-DW	#5-05, 4.0 x 11.9mm	AL body, Zinc stem	dover white	1000
73PAS63-DW	#6-03, 4.8 x 9.8mm	AL body, Zinc stem	dover white	500
73PAS43-DN	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	dune	1000
73PAS44-DN	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	dune	1000
73PAS54-DN	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	dune	1000
73PAS43-ES	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	estate	1000
73PAS43-EH	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	evening haze	1000
73PAS54-EH	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	evening haze	1000
73PAS43-GL	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	gully	1000
73PAS44-FA	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	facade	1000
73PAS44-GL	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	gully	1000
73PAS54-GL	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	gully	1000
73PAS44-HL	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	headland	1000
73PAS43-IS	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	ironstone	1000
73PAS44-IS	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	ironstone	1000
73PAS54-IS	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	ironstone	1000
73PAS43-JS	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	jasper	1000
73PAS44-JS	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	jasper	1000
73PAS54-JS	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	jasper	1000
73PAS44-LF	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	loft	1000
73PAS43-MG	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	mangrove	1000
73PAS44-MG	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	mangrove	1000
73PAS54-MG	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	mangrove	1000
73PAS43-MR	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	manor red	1000
73PAS44-MR	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	manor red	1000
73PAS54-MR	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	manor red	1000
73PAS63-MR	#6-03, 4.8 x 9.8mm	AL body, Zinc stem	manor red	500
73PAS43-MM	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	monument	1000
73PAS44-MM	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	monument	1000
73PAS54-MM	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	monument	1000
73PAS55-MM	#5-05, 4.0 x 11.9mm	AL body, Zinc stem	monument	1000
73PAS63-MO	#6-03, 4.8 x 9.8mm	AL body, Zinc stem	monument	500
73PAS66-MO	#6-06, 4.8 x 14.6mm	AL body, Zinc stem	monument	500
73PAS68-MM	#6-08, 4.8 x 17.8mm	AL body, Zinc stem	monument	500
73PAS42-NS	#4-02, 3.2 x 7.0mm	AL body, Zinc stem	night sky	1000
73PAS43-NS	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	night sky	1000
73PAS44-NS	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	night sky	1000
73PAS46-NS	#4-06, 3.2 x 13.4mm	AL body, Zinc stem	night sky	1000
73PAS54-NS	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	night sky	1000
73PAS55-NS	#5-05, 4.0 x 11.9mm	AL body, Zinc stem	night sky	1000
73PAS63-NS	#6-03, 4.8 x 9.8mm	AL body, Zinc stem	night sky	500
73PAS66-NS	#6-06, 4.8 x 14.6mm	AL body, Zinc stem	night sky	500
73PAS43-PE	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	pale eucalypt	1000
73PAS44-PE	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	pale eucalypt	1000
73PAS54-PE	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	pale eucalypt	1000
73PAS42-PB	#4-02, 3.2 x 6.4mm	AL body, Zinc stem	paperbark	1000
73PAS43-PB	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	paperbark	1000
73PAS44-PB	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	paperbark	1000
73PAS54-PB	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	paperbark	1000
73PAS64-PB	#6-04, 4.8 x 11.5mm	AL body, Zinc stem	paperbark	500
73PAS412-PT	#4-12, 3.2 x 23.3mm	AL body, Zinc stem	plantation	500
73PAS42-SG	#4-02, 3.2 x 6.4mm	AL body, Zinc stem	shale grey	1000
73PAS43-SG	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	shale grey	1000
73PAS44-SG	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	shale grey	1000
73PAS54-SG	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	shale grey	1000
73PAS55-SG	#5-05, 4.0 x 11.9mm	AL body, Zinc stem	shale grey	1000
73PAS42-SM	#4-02, 3.2 x 6.4mm	AL body, Zinc stem	surfmist	1000
73PAS43-SM	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	surfmist	1000
73PAS44-SM	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	surfmist	1000
73PAS54-SM	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	surfmist	1000
73PAS64-SM	#6-04, 4.8 x 11.5mm	AL body, Zinc stem	surfmist	500
73PAS43-TR	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	terrain	1000
73PAS44-TR	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	terrain	1000
73PAS54-TR	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	terrain	1000
73PAS43-WB	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	wallaby	1000
73PAS44-WL	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	wallaby	1000
73PAS54-WB	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	wallaby	1000
73PAS43-WH	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	wheat	1000
73PAS44-WH	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	wheat	1000
73PAS42-WT	#4-02, 3.2 x 6.4mm	AL body, Zinc stem	white	1000
73PAS43-WT	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	white	1000
73PAS44-WT	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	white	1000
73PAS46-WT	#4-06, 3.2 x 13.4mm	AL body, Zinc stem	white	1000
73PAS54-WT	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	white	1000
73PAS56-WT	#5-06, 4.0 x 14.0mm	AL body, Zinc stem	white	500
73PAS54-WHI	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	white birch	1000
73PAS43-WD	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	wilderness	1000
73PAS44-WD	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	wilderness	1000
73PAS412-WD	#4-12, 3.2 x 23.3mm	AL body, Zinc stem	wilderness	500
73PAS43-WS	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	windspray	1000
73PAS44-WS	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	windspray	1000
73PAS54-WS	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	windspray	1000
73PAS42-WG	#4-02, 3.2 x 6.4mm	AL body, Zinc stem	woodland grey	1000
73PAS43-WG	#4-03, 3.2 x 8.6mm	AL body, Zinc stem	woodland grey	1000
73PAS44-WG	#4-04, 3.2 x 10.2mm	AL body, Zinc stem	woodland grey	1000
73PAS54-WG	#5-04, 4.0 x 10.8mm	AL body, Zinc stem	woodland grey	1000

Dome head rivets are sometimes referred to AL body, Zinc stem truss head rivets, pop rivets or blind rivets.Standard rivets without paint are also available in a broader variety of sizes.Colorbond® colours are sometimes referred to AL body, Zinc stem colourbond colours.

Additional information

Size	#4-02, 3.2 x 6.4mm, #4-02, 3.2 x 7.0mm, #4-03, 3.2 x 8.6mm, #4-04, 3.2 x 10.2mm, #4-06, 3.2 x 12.7mm, #4-06, 3.2 x 13.4mm, #4-12, 3.2 x 23.3mm, #5-04, 4.0 x 10.8mm, #5-05, 4.0 x 11.9mm, #5-06, 4.0 x 14.0mm, #6-03, 4.8 x 9.8mm, #6-04, 4.8 x 11.5mm, #6-06, 4.8 x 14.6mm, #6-08, 4.8 x 17.8mm
Material	aluminium body, zinc plated steel stem
Colour	basalt, blue gum, bushland, classic cream, cottage green, cove, deep ocean, dover white, dune, estate, evening haze, facade, gully, headland, ironstone, jasper, loft, mangrove, manor red, monument, night sky, pale eucalypt, paperbark, plantation, primrose, shale grey, southerly, stone, surfmist, terrain, wallaby, wheat, white, white birch, wilderness, windspray, woodland grey
