Description

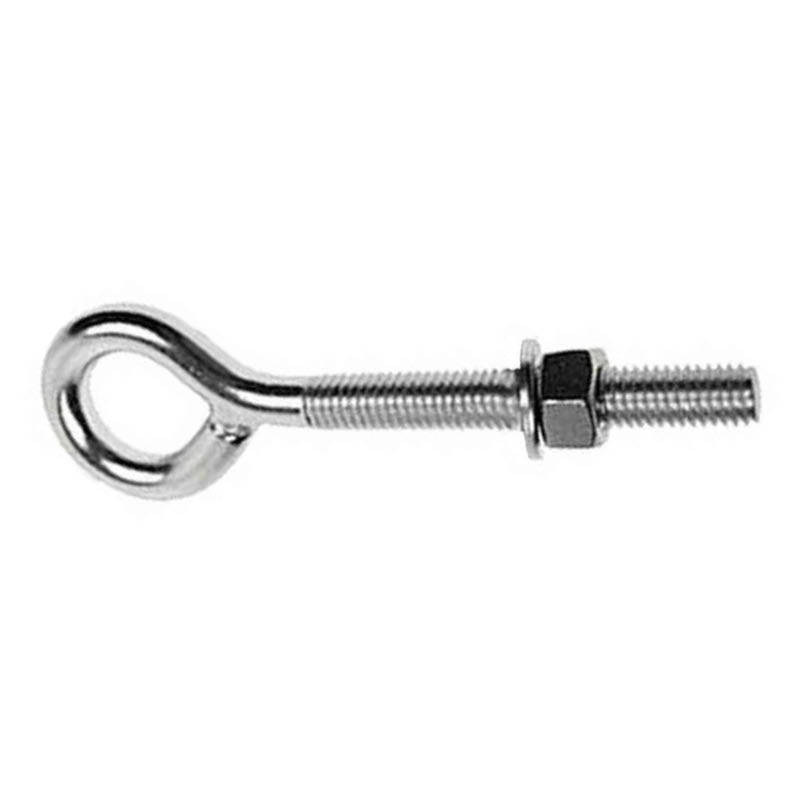

The imperial eye bolt kit is used to attach an eye to a structure, whereby cable, rope or shackles can then be secured. They are simple to use and install.
Features:
- They are available in hot dip galvanised steel or zinc plated steel
- They are available in various sizes to suit your needs
- These eyebolts are made to HEC specifications
Eye bolt kit – imperial- quick reference
| Code | Size | Specs | Qty |
| KENMSGW0370200 | 09.53 x 50.8mm, 3/8 x 2″ | HGD | 50 |
| KENMSGW0370300 | 09.53 x 76.2mm, 3/8 x 3″ | HGD | 50 |
| KENMSGW0370350 | 09.53 x 88.9mm, 3/8 x 3 1/2″ | HGD | 50 |
| KENMSGW0370400 | 09.53 x 101.6mm, 3/8 x 4″ | HGD | 50 |
| KENMSGW0370600 | 09.53 x 152.4mm, 3/8 x 6″ | HGD | 50 |
| KENMSGW0370800 | 09.53 x 203.2mm, 3/8 x 8″ | HGD | 25 |
| KENMSGW0500300 | 12.70 x 76.2mm, 1/2 x 3″ | HGD | 25 |
| KENMSGW0500400 | 12.70 x 101.6mm, 1/2 x 4″ | HGD | 25 |
| KENMSGW0500500 | 12.70 x 127.0mm, 1/2 x 5″ | HGD | 25 |
| KENMSGW0500600 | 12.70 x 152.4mm, 1/2 x 6″ | HGD | 25 |
| KENMSGW0500800 | 12.70 x 203.2mm, 1/2 x 8″ | HGD | 25 |
| KENMSGW0500900 | 12.70 x 228.6mm, 1/2 x 9″ | HGD | 25 |
| KENMSGW0620400 | 15.88 x 101.6mm, 5/8 x 4″ | HGD | 25 |
| KENMSZW0250100 | 06.35 x 25.4mm, 1/4 x 1″ | zinc | 100 |
| KENMSZW0250200 | 06.35 x 50.8mm, 1/4 x 2″ | zinc | 100 |
| KENMSZW0250250 | 06.35 x 63.5mm, 1/4 x 2 1/2″ | zinc | 100 |
| KENMSZW0250300 | 06.35 x 76.2mm, 1/4 x 3″ | zinc | 100 |
| KENMSZW0250400 | 06.35 x 101.6mm, 1/4 x 4″ | zinc | 100 |
| KENMSZW0250450 | 06.35 x 114.3mm, 1/4 x 4 1/2″ | zinc | 100 |
| KENMSZW0310200 | 07.94 x 50.8mm, 5/16 x 2″ | zinc | 100 |
| KENMSZW0310250 | 07.94 x 63.5mm, 5/16 x 2 1/2″ | zinc | 100 |
| KENMSZW0310300 | 07.94 x 76.2mm, 5/16 x 3″ | zinc | 100 |
| KENMSZW0310400 | 07.94 x 101.6mm, 5/16 x 4″ | zinc | 100 |
| KENMSZW0310450 | 07.94 x 114.3mm, 5/16 x 4 1/2″ | zinc | 100 |
| KENMSZW0310500 | 07.94 x 127.0mm, 5/16 x 5″ | zinc | 100 |
| KENMSZW0310600 | 07.94 x 152.4mm, 5/16 x 6″ | zinc | 100 |
