Description

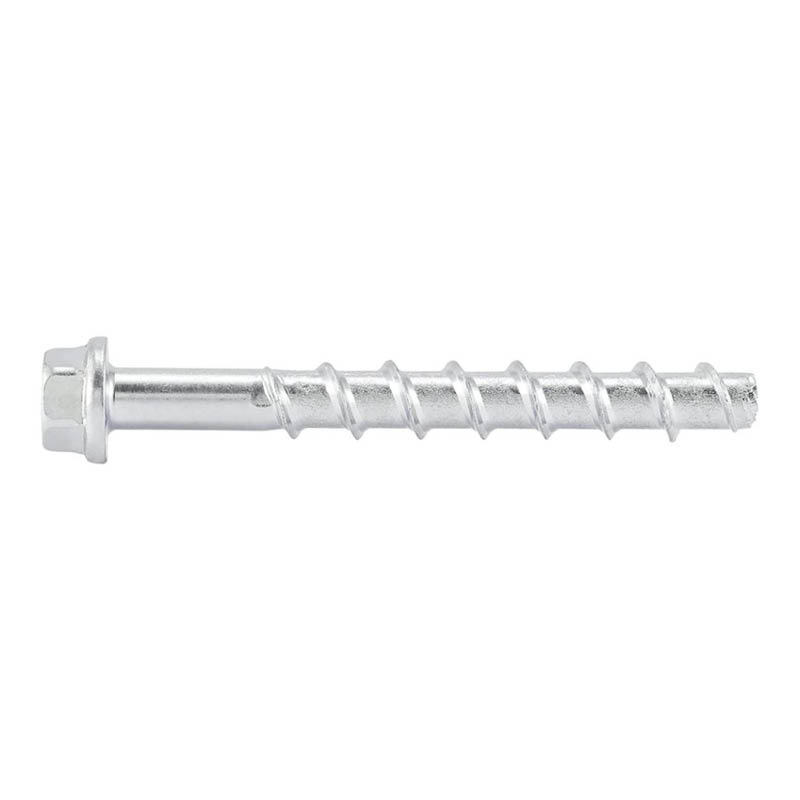

These hex flange head screw bolt anchors are fire-rated, seismic, and come with ETA Option 1 approval. They suit a wide variety of applications such as bracing and the fastening of base plates, brackets, channel & hand rails. Choose from C1 or C1/C2.
Features:
- The hex flange head leaves a sleek finish and offers a high level of resistance to corrosion
- The M6 sizes have a minimum embedment of 40mm, M8 sizes have a 50mm, M10’s have a 60mm and the M12 and M14 sizes have a 75mm minimum embedment
- It taps the concrete hole as it forms its own undercut when screwed into the concrete
- Made from silver-coated steel R1000 hours salt spray and available in a wide variety of sizes and lengths to suit your application
Fire rated and seismic screw bolt anchors – quick reference
| Code | Size | Specs | Qty |
| EXHMSR17M060045 | M06 x 45mm | silver coated – R1000 hours – C1 | 100 |
| EXHMSR17M060060 | M06 x 60mm | silver coated – R1000 hours – C1 | 100 |
| EXHMSR17M060080 | M06 x 80mm | silver coated – R1000 hours – C1 | 50 |
| EXHMSR17M060100 | M06 x 100mm | silver coated – R1000 hours – C1 | 50 |
| EXHMSR17M060120 | M06 x 120mm | silver coated – R1000 hours – C1 | 50 |
| EXHMSR18M080065 | M08 x 65mm | silver coated – R1000 hours – C1/C2 | 50 |
| EXHMSR18M080075 | M08 x 75mm | silver coated – R1000 hours – C1/C2 | 50 |
| EXHMSR18M080090 | M08 x 90mm | silver coated – R1000 hours – C1/C2 | 50 |
| EXHMSR18M080110 | M08 x 110mm | silver coated – R1000 hours – C1/C2 | 50 |
| EXHMSR18M080130 | M08 x 130mm | silver coated – R1000 hours – C1/C2 | 50 |
| EXHMSR18M080150 | M08 x 150mm | silver coated – R1000 hours – C1/C2 | 50 |
| EXHMSR18M100100 | M10 x 100mm | silver coated – R1000 hours – C1/C2 | 50 |
| EXHMSR18M100120 | M10 x 120mm | silver coated – R1000 hours – C1/C2 | 50 |
| EXHMSR18M100140 | M10 x 140mm | silver coated – R1000 hours – C1/C2 | 50 |
| EXHMSR18M100160 | M10 x 160mm | silver coated – R1000 hours – C1/C2 | 50 |
| EXHMSR18M100200 | M10 x 200mm | silver coated – R1000 hours – C1/C2 | 50 |
| EXHMSR18M120110 | M12 x 110mm | silver coated – R1000 hours – C1/C2 | 50 |
| EXHMSR18M120130 | M12 x 130mm | silver coated – R1000 hours – C1/C2 | 50 |
| EXHMSR18M120150 | M12 x 150mm | silver coated – R1000 hours – C1/C2 | 50 |
| EXHMSR18M140115 | M14 x 115mm | silver coated – R1000 hours – C1/C2 | 20 |
| EXHMSR18M140135 | M14 x 135mm | silver coated – R1000 hours – C1/C2 | 20 |
| EXHMSR18M140160 | M14 x 160mm | silver coated – R1000 hours – C1/C2 | 20 |
