Description

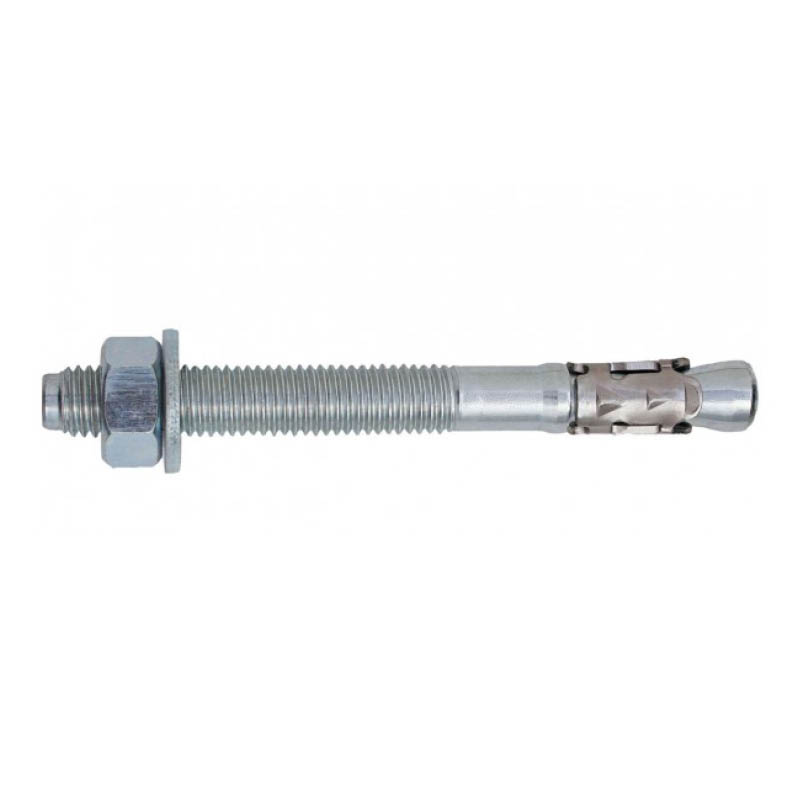

The Iccons FM753 Crack through bolt wedge anchors are seismic C1 & C2 certified. These anchors can handle high load performance and undercut into concrete with nine gripping dents.
Features:
- ETA, cracked concrete, C1 and C2 approved and fire rated
- High performing expansion anchor
- Available in stainless steel 316 and grade 9.8 carbon steel
- Suitable when working on structural fittings, scaffolding, shutters, facades and more
Iccons FM753 Crack through bolt wedge anchors – quick reference
|
Code |
Size |
Specs |
Qty |
|
FM753C08068G |
M08 x 68mm |
HGD |
100 |
|
FM753C08075G |
M08 x 75mm |
HGD |
100 |
|
FM753C08090G |
M08 x 90mm |
HGD |
100 |
|
FM753C08115G |
M08 x 115mm |
HGD |
100 |
|
FM753C08135G |
M08 x 135mm |
HGD |
100 |
|
FM753C08165G |
M08 x 165mm |
HGD |
50 |
|
FM753C10090G |
M10 x 90mm |
HGD |
50 |
|
FM753C10105G |
M10 x 105mm |
HGD |
50 |
|
FM753C10115G |
M10 x 115mm |
HGD |
50 |
|
FM753C10135G |
M10 x 135mm |
HGD |
50 |
|
FM753C10155G |
M10 x 155mm |
HGD |
50 |
|
FM753C10185G |
M10 x 185mm |
HGD |
25 |
|
FM753C12110G |
M12 x 110mm |
HGD |
50 |
|
FM753C12120G |
M12 x 120mm |
HGD |
50 |
|
FM753C12145G |
M12 x 145mm |
HGD |
25 |
|
FM753C12170G |
M12 x 170mm |
HGD |
25 |
|
FM753C12200G |
M12 x 200mm |
HGD |
25 |
|
FM753C16130G |
M16 x 130mm |
HGD |
20 |
|
FM753C16150G |
M16 x 150mm |
HGD |
20 |
|
FM753C16185G |
M16 x 185mm |
HGD |
20 |
|
FM753C16220G |
M16 x 220mm |
HGD |
15 |
|
FM753C08068SS |
M08 x 68mm |
SS 316 |
100 |
|
FM753C08075SS |
M08 x 75mm |
SS 316 |
100 |
|
FM753C08090SS |
M08 x 90mm |
SS 316 |
100 |
|
FM753C08115SS |
M08 x 115mm |
SS 316 |
100 |
|
FM753C08135SS |
M08 x 135mm |
SS 316 |
100 |
|
FM753C08165SS |
M08 x 165mm |
SS 316 |
50 |
|
FM753C10090SS |
M10 x 90mm |
SS 316 |
50 |
|
FM753C10105SS |
M10 x 105mm |
SS 316 |
50 |
|
FM753C10115SS |
M10 x 115mm |
SS 316 |
50 |
|
FM753C10135SS |
M10 x 135mm |
SS 316 |
50 |
|
FM753C10155SS |
M10 x 155mm |
SS 316 |
50 |
|
FM753C10185SS |
M10 x 185mm |
SS 316 |
25 |
|
FM753C12110SS |
M12 x 110mm |
SS 316 |
50 |
|
FM753C12120SS |
M12 x 120mm |
SS 316 |
50 |
|
FM753C12145SS |
M12 x 145mm |
SS 316 |
25 |
|
FM753C12170SS |
M12 x 170mm |
SS 316 |
25 |
|
FM753C12200SS |
M12 x 200mm |
SS 316 |
25 |
|
FM753C16130SS |
M16 x 130mm |
SS 316 |
20 |
|
FM753C16150SS |
M16 x 150mm |
SS 316 |
20 |
|
FM753C16185SS |
M16 x 185mm |
SS 316 |
20 |
|
FM753C16220SS |
M16 x 220mm |
SS 316 |
15 |
