Description

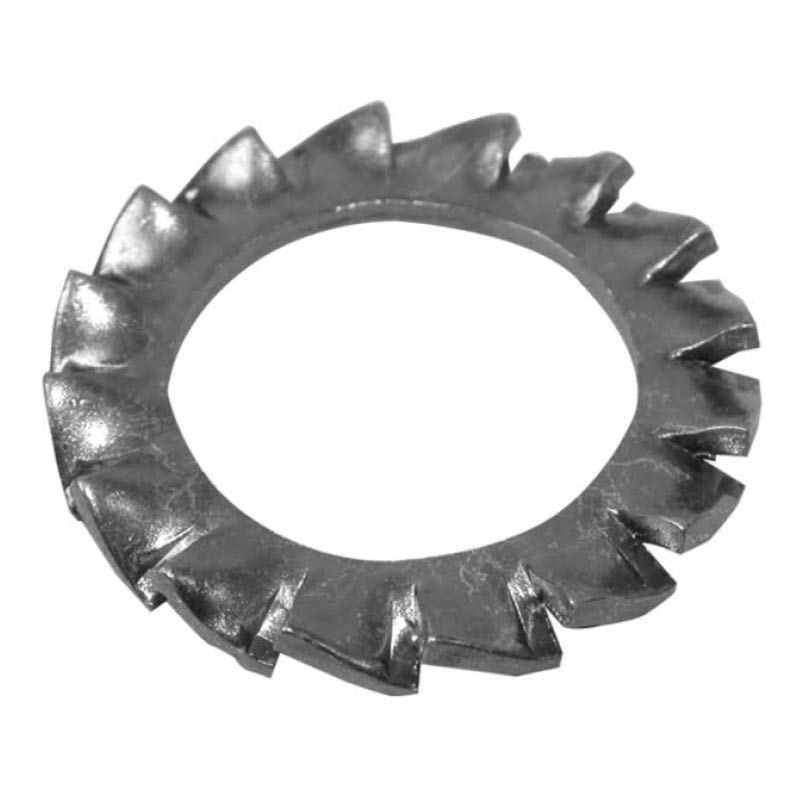

External serrated tooth lock washers are recommended for use in inaccessible application zones where it may be difficult to tighten the bolt or screw once fitted.
Features:
- Gives a very high friction factor allowing for progressive and evenly distributed tightening torque around the head of the bolt or screw
- The edges of the teeth of this washer are encrusted in the head of the bolt or screw, forming an immobile unit resistant to loosening
- Shake proof washers
Serrated tooth lock washers – quick reference
|
Code |
Size |
Specs |
Qty |
|
WL04SEM04 |
M4 x 8.0 x 0.5mm |
SS 304 |
500 |
|
WL04SEM06 |
M6 x 11.0 x 0.7mm |
SS 304 |
200 |
|
WL04SEM10 |
M10 x 18.0 x 0.9mm |
SS 304 |
200 |
|
WL04SEM12 |
M12 x 20.5 x 1.0mm |
SS 304 |
100 |
