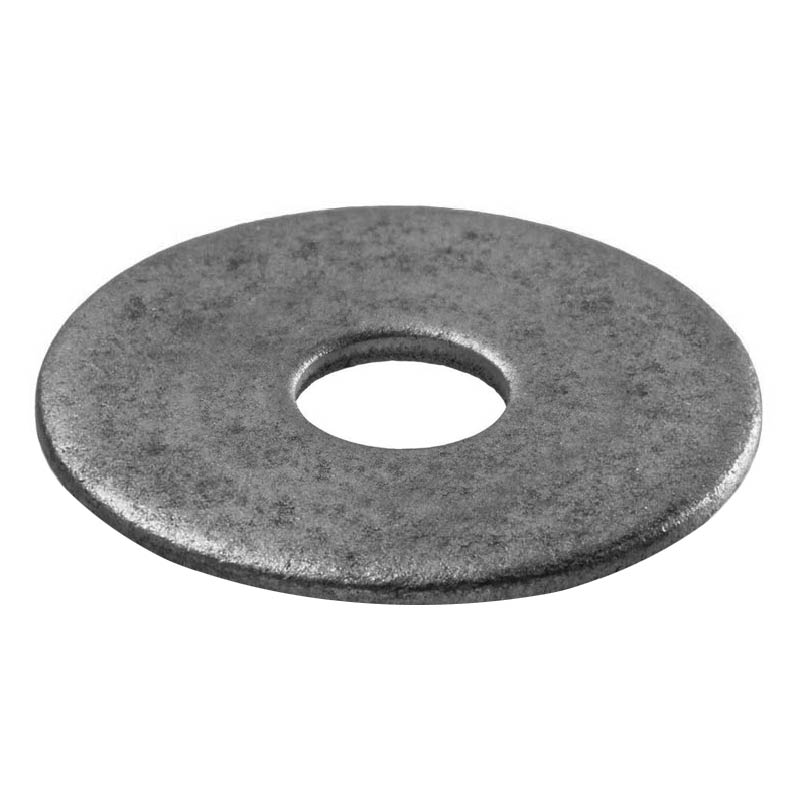

Washers – mudguard – imperial

Name: Washers - mudguard - imperial
SKU: WMZPI
Availability: InStock

$0.02

Mudguard washers have a greater surface area than regular washers which is ideal for use with channel/strut. They are made from zinc plated steel and are available in a large variety of sizes.

Size

Material

Clear

SKU: WMZPI Categories: Bolts, Nuts & Washers, Washers Tag: Building

Description

Mudguard washers have a greater surface area than regular washers which is ideal for use with channel/strut. They are made from zinc plated steel and are available in a large variety of sizes.

Features:

Flat and round
Suitable for distributing forces over thinner or softer materials to prevent damage
Made from zinc plated steel for resistance to corrosion in indoor environments

Mudguard washers – quick reference

Code	Size	Specs	Qty
WMZPI030520HP	M03 approx, 1/8 x 1/2″ x 20g	Zinc – clear/silver	200
WMZPI050718HP	M05 approx, 3/16 x 3/4″ x 18g	Zinc – clear/silver	200
WMZPI051916HP	M05 approx, 3/16 x 3/4″ x 16g	Zinc – clear/silver	200
WMZPI052516HP	M05 approx, 3/16 x 1″ x 16g	Zinc – clear/silver	200
WMZPI053016HP	M05 approx, 3/16 x 1 1/4″ x 16g	Zinc – clear/silver	200
WMZPI060718HP	M06 approx, 1/4 x 3/4″ x 18g	Zinc – clear/silver	200
WMZPI062516HP	M06 approx, 1/4 x 1″ x 16g	Zinc – clear/silver	200
WMZPI063016HP	M06 approx, 1/4 x 1 1/4″ x 16g	Zinc – clear/silver	200
WMZPI065016HP	M06 approx, 1/4 x 2″ x 16g	Zinc – clear/silver	100
WMZPI082516HP	M08 approx, 5/16 x 1″ x 16g	Zinc – clear/silver	200
WMZPI083016HP	M08 approx, 5/16 x 1 1/4″ x 16g	Zinc – clear/silver	200
WMZPI083816HP	M08 approx, 5/16 x 1 1/2″ x 16g	Zinc – clear/silver	200
WMZPI102516HP	M10 approx, 3/8 x 1″ x 16g	Zinc – clear/silver	200
WMZPI103016HP	M10 approx, 3/8 x 1 1/4″ x 16g	Zinc – clear/silver	200
WMZPI103816HP	M10 approx, 3/8 x 1 1/2″ x 16g	Zinc – clear/silver	200
WMZPI105016HP	M10 approx, 3/8 x 2″ x 16g	Zinc – clear/silver	100
WMZPI122016HP	M12 approx, 1/2 x 2″ x 16g	Zinc – clear/silver	100
WMZPI123814HP	M12 approx, 1/2 x 1 1/2″ x 14g	Zinc – clear/silver	200
WMZPI125012HP	M12 approx, 1/2 x 2″ x 12g	Zinc – clear/silver	100
WMZPI141216HP	M14 approx, 9/16 x 1 1/4″ x 16g	Zinc – clear/silver	200
WMZPI162012HP	M16 approx, 5/8 x 2″ x 12g	Zinc – clear/silver	100
WMZPI162016HP	M16 approx, 5/8 x 2″ x 16g	Zinc – clear/silver	100
WMZPI257516HP	M06 approx, 1/4 x 3/4″ x 16g	Zinc – clear/silver	200
WMZPI312016HP	M08 approx, 5/16 x 2″ x 16g	Zinc – clear/silver	100
WMZPI317516HP	M08 approx, 5/16 x 3/4″ x 16g	Zinc – clear/silver	200
WMZPI372012HP	M10 approx, 3/8 x 2″ x 12g	Zinc – clear/silver	100
WMZPI512516HP	M12 approx, 1/2 x 1 1/4″ x 16g	Zinc – clear/silver	100

Additional information

Size

-, M03 approx, 1/8 x 1/2" x 20g, M05 approx, 3/16 x 1 1/4" x 16g, M05 approx, 3/16 x 1" x 16g, M05 approx, 3/16 x 3/4" x 16g, M05 approx, 3/16 x 3/4" x 18g, M06 approx, 1/4 x 1 1/4" x 16g, M06 approx, 1/4 x 1" x 16g, M06 approx, 1/4 x 2" x 16g, M06 approx, 1/4 x 3/4" x 16g, M06 approx, 1/4 x 3/4" x 18g, M08 approx, 5/16 x 1 1/2" x 16g, M08 approx, 5/16 x 1 1/4" x 16g, M08 approx, 5/16 x 1" x 16g, M08 approx, 5/16 x 2" x 16g, M08 approx, 5/16 x 3/4" x 16g, M10 approx, 3/8 x 1 1/2" x 16g, M10 approx, 3/8 x 1 1/4" x 16g, M10 approx, 3/8 x 1" x 16g, M10 approx, 3/8 x 2" x 12g, M10 approx, 3/8 x 2" x 16g, M12 approx, 1/2 x 1 1/2" x 14g, M12 approx, 1/2 x 1 1/4" x 16g, M12 approx, 1/2 x 2" x 12g, M12 approx, 1/2 x 2" x 16g, M14 approx, 9/16 x 1 1/4" x 16g, M16 approx, 5/8 x 2" x 12g, M16 approx, 5/8 x 2" x 16g

Material

-, zinc plated steel – clear/silver
