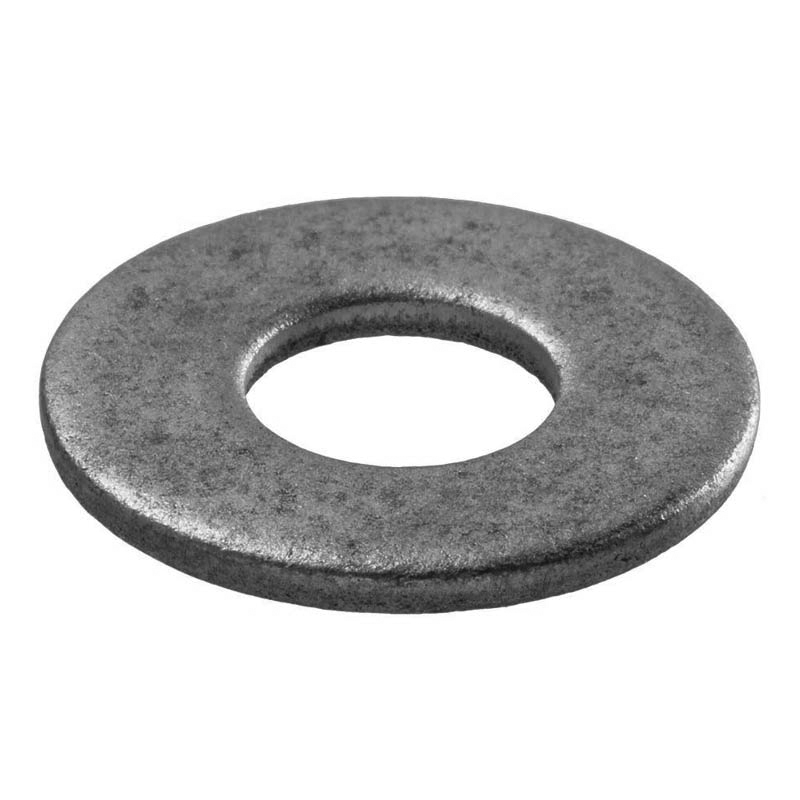

Washers - flat round - imperial - photo

Washers – flat round – imperial

$0.01

Imperial washers distribute the pressure of the nut over a larger surface area to prevent surface damage. They are available in zinc plated steel as well as grade 304 and 316 stainless steel.

SKU: WR Categories: , Tag:

Description

Imperial washers distribute the pressure of the nut over a larger surface area to prevent surface damage. They are available in zinc plated steel as well as grade 304 and 316 stainless steel.

Features:

  • Flat, round shape
  • Comes in a wide variety of imperial sizes to suit your application
  • Zinc is suitable for indoor use and stainless steel is ideal for outdoor use
  • Choose grade 316 stainless steel for superior protection against rust in highly corrosive environments, such as coastal areas

Imperial washers – quick reference

Code Size Specs Qty
WR04P018043 M5 x 11mm approx, 3/16 x 7/16 x 20g SS 304 200
WR04P018050 M5 x 13mm approx, 3/16 x 1/2 x 20g SS 304 100
WR04P018075 M5 x 19mm approx, 3/16 x 3/4 x 18g SS 304 100
WR04P018087 M5 x 22mm approx, 3/16 x 7/8 x 18g SS 304 100
WR04P018100 M5 x 25mm approx, 3/16 x 1 x 16g SS 304 100
WR04P018125 M5 x 32mm approx, 3/16 x 1 1/4 x 16g SS 304 100
WR04P025050 M6 x 13mm approx, 1/4 x 1/2 x 20g SS 304 100
WR04P025056 M6 x 14mm approx, 1/4 x 9/16 x 18g SS 304 100
WR04P025062 M6 x 16mm approx, 1/4 x 5/8 x 18g SS 304 100
WR04P025075 M6 x 19mm approx, 1/4 x 3/4 x 18g SS 304 100
WR04P025100 M6 x 25mm approx, 1/4 x 1 x 16g SS 304 100
WR04P025125 M6 x 32mm approx, 1/4 x 1 1/4 x 16g SS 304 100
WR04P031062 M8 x 16mm approx, 5/16 x 5/8 x 18g SS 304 100
WR04P031075 M8 x 19mm approx, 5/16 x 3/4 x 18g SS 304 100
WR04P031100 M8 x 25mm approx, 5/16 x 1 x 16g SS 304 100
WR04P031125 M8 x 32mm approx, 5/16 x 1 1/4 x 16g SS 304 100
WR04P037075 M10 x 19mm approx, 3/8 x 3/4 x 18g SS 304 100
WR04P037100 M10 x 25mm approx, 3/8 x 1 x 16g SS 304 100
WR04P037125 M10 x 32mm approx, 3/8 x 1 1/4 x 16g SS 304 100
WR04P037150 M10 x 38mm approx, 3/8 x 1 1/2 x 14g SS 304 100
WR04P050100 M12 x 25mm approx, 1/2 x 1 x 16g SS 304 100
WR04P050125 M12 x 32mm approx, 1/2 x 1 1/4 x 14g SS 304 100
WR04P050200 M12 x 51mm approx, 1/2 x 2 x 14g SS 304 50
WR04P062125 M16 x 32mm approx, 5/8 x 1 1/4 x 16g SS 304 100
WR04P062150 M16 x 38mm approx, 5/8 x 1 1/2 x 14g SS 304 100
WR04P075150 M19 x 38mm approx, 3/4 x 1 1/2 x 14g SS 304 100
WR04P075187 M19 x 48mm approx, 3/4 x 1 7/8 x 12g SS 304 100
WR04P087162 M22 x 41mm approx, 7/8 x 1 5/8 x 14g SS 304 50
WR04P087200 M22 x 51mm approx, 7/8 x 2 x 10g SS 304 50
WR04P100187 M25 x 48mm approx, 1 x 1 7/8 x 12g SS 304 50
WR04P100250 M25 x 64mm approx, 1 x 2 1/2 x 10g SS 304 25
WR16P018043 M5 x 11mm approx, 3/16 x 7/16 x 20g SS 316 200
WR16P018050 M5 x 13mm approx, 3/16 x 1/2 x 20g SS 316 100
WR16P018075 M5 x 19mm approx, 3/16 x 3/4 x 18g SS 316 100
WR16P018087 M5 x 22mm approx, 3/16 x 7/8 x 18g SS 316 100
WR16P018100 M5 x 25mm approx, 3/16 x 1 x 16g SS 316 100
WR16P018125 M5 x 32mm approx, 3/16 x 1 1/4 x 16g SS 316 100
WR16P025050 M6 x 13mm approx, 1/4 x 1/2 x 20g SS 316 100
WR16P025056 M6 x 14mm approx, 1/4 x 9/16 x 18g SS 316 100
WR16P025062 M6 x 16mm approx, 1/4 x 5/8 x 18g SS 316 100
WR16P025075 M6 x 19mm approx, 1/4 x 3/4 x 18g SS 316 100
WR16P025100 M6 x 25mm approx, 1/4 x 1 x 16g SS 316 100
WR16P025125 M6 x 32mm approx, 1/4 x 1 1/4 x 16g SS 316 100
WR16P031062 M8 x 16mm approx, 5/16 x 5/8 x 18g SS 316 100
WR16P031075 M8 x 19mm approx, 5/16 x 3/4 x 18g SS 316 100
WR16P031100 M8 x 25mm approx, 5/16 x 1 x 16g SS 316 100
WR16P031125 M8 x 32mm approx, 5/16 x 1 1/4 x 16g SS 316 100
WR16P037075 M10 x 19mm approx, 3/8 x 3/4 x 18g SS 316 100
WR16P037100 M10 x 25mm approx, 3/8 x 1 x 16g SS 316 100
WR16P037125 M10 x 32mm approx, 3/8 x 1 1/4 x 16g SS 316 100
WR16P037150 M10 x 38mm approx, 3/8 x 1 1/2 x 14g SS 316 100
WR16P050100 M12 x 25mm approx, 1/2 x 1 x 16g SS 316 100
WR16P050125 M12 x 32mm approx, 1/2 x 1 1/4 x 14g SS 316 100
WR16P050200 M12 x 51mm approx, 1/2 x 2 x 14g SS 316 50
WR16P091125 M14 x 32mm, 9/16 x 1 1/4 x 14g SS 316 100
WR16P062125 M16 x 32mm approx, 5/8 x 1 1/4 x 16g SS 316 100
WR16P062150 M16 x 38mm approx, 5/8 x 1 1/2 x 14g SS 316 100
WR16P075150 M19 x 38mm approx, 3/4 x 1 1/2 x 14g SS 316 100
WR16P075187 M19 x 48mm approx, 3/4 x 1 7/8 x 12g SS 316 100
WR16P087162 M22 x 41mm approx, 7/8 x 1 5/8 x 14g SS 316 50
WR16P087200 M22 x 51mm approx, 7/8 x 2 x 10g SS 316 50
WR16P100187 M25 x 48mm approx, 1 x 1-7/8 x 12g SS 316 50
WR16P100250 M25 x 64mm approx, 1 x 2 1/2 x 10g SS 316 25
WRMSZ01203122 M3 x 08mm approx, 1/8 x 5/16 x 22g Zinc 200
WRMSZ01203720 M3 x 10mm approx, 1/8 x 3/8 x 20g Zinc 200
WRMSZ01206218 M3 x 16mm approx, 1/8 x 5/8 x 18g Zinc 200
WRMSZ01503720 M4 x 10mm approx, 5/32 x 3/8 x 20g Zinc 200
WRMSZ01504320 M4 x 11mm approx, 5/32 x 7/16 x 20g Zinc 200
WRMSZ01506216 M4 x 16mm approx, 5/32 x 5/8 x 16g Zinc 200
WRMSZ01804320 M5 x 11mm approx, 3/16 x 7/16 x 20g Zinc 200
WRMSZ01805020 M5 x 13mm approx, 3/16 x 1/2 x 20g Zinc 200
WRMSZ02505018 M6 x 13mm approx, 1/4 x 1/2 x 18g Zinc 200
WRMSZ02505618 M6 x 14mm approx, 1/4 x 9/16 x 18g Zinc 200
WRMSZ02506218 M6 x 16mm approx, 1/4 x 5/8 x 18g Zinc 200
WRMSZ03106218 M8 x 16mm approx, 5/16 x 5/8 x 18g Zinc 200
WRMSZ03107518 M8 x 19mm approx, 5/16 x 3/4 x 18g Zinc 200
WRMSZ03108716 M8 x 22mm approx, 5/16 x 7/8 x 16g Zinc 200
WRMSZ03707518 M10 x 19mm approx, 3/8 x 3/4 x 18g Zinc 200
WRMSZ03708718 M10 x 22mm approx, 3/8 x 7/8 x 18g Zinc 200
WRMSZ05010016 M12 x 25mm approx, 1/2 x 1 x 16g Zinc 200
WRMSZ07515014 M19 x 38mm approx, 3/4 x 1 1/2 x 14g Zinc 100
WRMSZ08716214 M22 x 41mm approx, 7/8 x 1 5/8 x 14g Zinc 100
WRMSZ10018714 M25 x 48mm approx, 1 x 1 7/8 x 14g Zinc 100

Additional information

Size

34.93 x 68.00mm, 1 3/8", M03 x 08mm approx, 1/8 x 5/16 x 22g, M03 x 10mm approx, 1/8 x 3/8 x 20g, M03 x 16mm approx, 1/8 x 5/8 x 18g, M04 x 10mm approx, 5/32 x 3/8 x 20g, M04 x 11mm approx, 5/32 x 7/16 x 20g, M04 x 16mm approx, 5/32 x 5/8 x 16g, M05 x 11mm approx, 3/16 x 7/16 x 20g, M05 x 13mm approx, 3/16 x 1/2 x 20g, M05 x 16mm approx, 3/16 x 5/8 x 16g, M05 x 19mm approx, 3/16 x 3/4 x 18g, M05 x 22mm approx, 3/16 x 7/8 x 18g, M05 x 25mm approx, 3/16 x 1 x 16g, M05 x 32mm approx, 3/16 x 1 1/4 x 16g, M06 x 13mm approx, 1/4 x 1/2 x 16g, M06 x 13mm approx, 1/4 x 1/2 x 18g, M06 x 13mm approx, 1/4 x 1/2 x 20g, M06 x 14mm approx, 1/4 x 9/16 x 18g, M06 x 16mm approx, 1/4 x 5/8 x 18g, M06 x 19mm approx, 1/4 x 3/4 x 18g, M06 x 22mm approx, 1/4 x 7/8 x 18g, M06 x 25mm approx, 1/4 x 1 x 16g, M06 x 32mm approx, 1/4 x 1 1/4 x 16g, M06 x 38mm approx, 1/4 x 1 1/2 x 16g, M08 x 16mm approx, 5/16 x 5/8 x 18g, M08 x 19mm approx, 5/16 x 3/4 x 18g, M08 x 22mm approx, 5/16 x 7/8 x 16g, M08 x 22mm approx, 5/16 x 7/8 x 18g, M08 x 25mm approx, 5/16 x 1 x 16g, M08 x 32mm approx, 5/16 x 1 1/4 x 16g, M10 x 19mm approx, 3/8 x 3/4 x 16g, M10 x 19mm approx, 3/8 x 3/4 x 18g, M10 x 22mm approx, 3/8 x 7/8 x 16g, M10 x 22mm approx, 3/8 x 7/8 x 18g, M10 x 25mm approx, 3/8 x 1 x 16g, M10 x 32mm approx, 3/8 x 1 1/4 x 16g, M10 x 38mm approx, 3/8 x 1 1/2 x 14g, M12 x 25mm approx, 1/2 x 1 x 16g, M12 x 32mm approx, 1/2 x 1 1/4 x 14g, M12 x 51mm approx, 1/2 x 2 x 14g, M14 x 32mm approx, 9/16 x 1 1/4 x 14g, M16 x 32mm approx, 5/8 x 1 1/4 x 15g, M16 x 32mm approx, 5/8 x 1 1/4 x 16g, M16 x 38mm approx, 5/8 x 1 1/2 x 14g, M19 x 38mm approx, 3/4 x 1 1/2 x 14g, M19 x 48mm approx, 3/4 x 1 7/8 x 12g, M22 x 41mm approx, 7/8 x 1 5/8 x 14g, M22 x 51mm approx, 7/8 x 2 x 10g, M25 x 48mm approx, 1 x 1 7/8 x 12g, M25 x 48mm approx, 1 x 1 7/8 x 14g, M25 x 64mm approx, 1 x 2 1/2 x 10g
Material

stainless steel – grade 304, stainless steel – grade 316, zinc plated steel – clear/silver, zinc plated steel – yellow/gold
