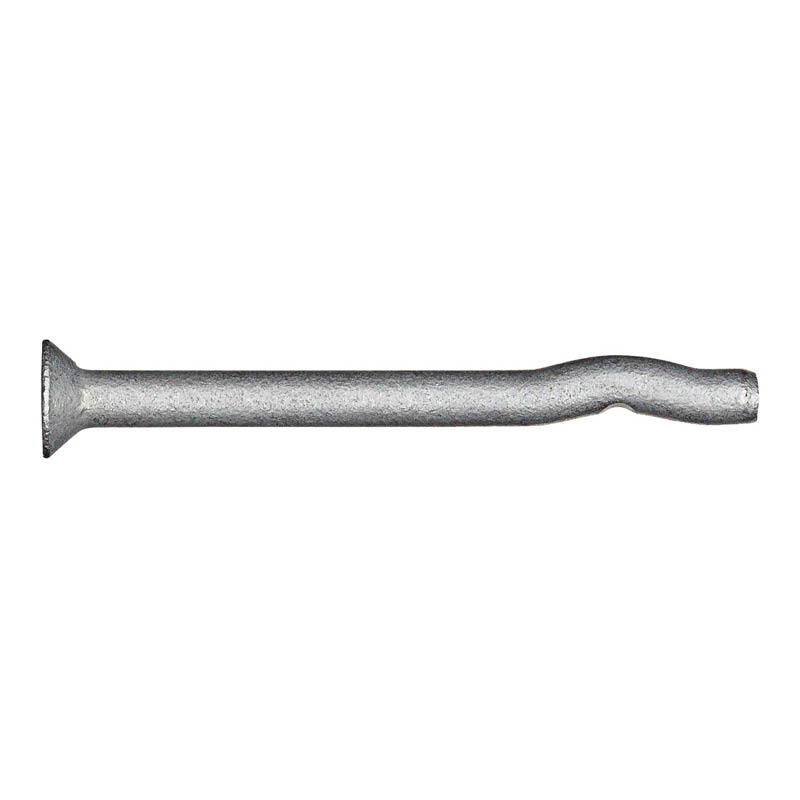

Spike anchors – countersunk head

$0.70$0.97

Spike countersunk anchors are a one piece, vibration resistant anchor that is designed for use in concrete, brick, block or stone. The “s” shaped configuration at the end of the anchor creates an expansion mechanism.

Clear
SKU: 056 Categories: ,

Description

Spike countersunk anchors are a one piece, vibration resistant anchor that is designed for use in concrete, brick, block or stone. The “s” shaped configuration at the end of the anchor creates an expansion mechanism.

Features:

  • Creates a spring type compression force against the walls of the hole
  • Mechanically galvanised for superior corrosion protection
  • Tamper proof
  • Countersunk head for flush finishing

Countersunk spike anchors – quick reference

Code

Size

Specs

Qty

056-MHAHTMCM050065

M05 x 65mm

mechanically galvanised

100

056-MHAHTMCM050075

M05 x 75mm

mechanically galvanised

100

056-MHAHTMCM050100

M05 x 100mm

mechanically galvanised

100

056-MHAHTMCM065038

M06.5 x 38mm

mechanically galvanised

100

056-MHAHTMCM065050

M06.5 x 50mm

mechanically galvanised

100

056-MHAHTMCM065065

M06.5 x 63mm

mechanically galvanised

100

056-MHAHTMCM065075

M06.5 x 75mm

mechanically galvanised

100

056-MHAHTMCM065100

M06.5 x 100mm

mechanically galvanised

100

05628-PWR

M06.5 x 64mm

zinc

100

CS65100MM-PWR

M06.5 x 100mm

zinc

100

Spike anchors – countersunk head are sometimes referred to as Spikes

Additional information

Size

M05 x 100mm, M05 x 65mm, M05 x 75mm, M06.5 x 100mm, M06.5 x 38mm, M06.5 x 50mm, M06.5 x 63mm, M06.5 x 64mm, M06.5 x 75mm

Material

mechanically galvanised, zinc plated steel – clear/silver
