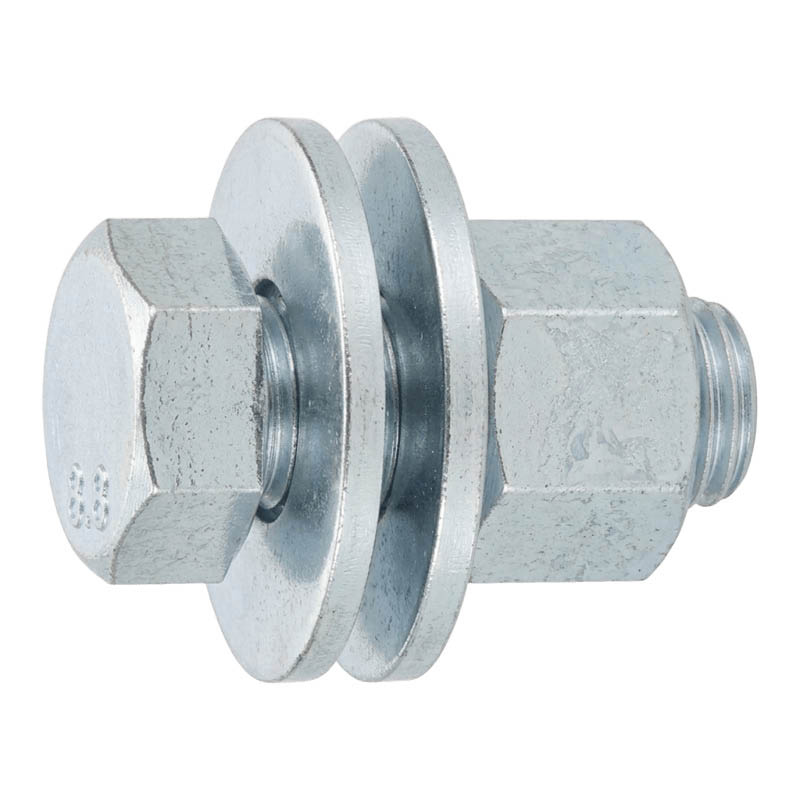

Purlin bolts - hex head - with nuts & washers - structural assembly - photo

Purlin bolts – hex head w nuts/washers – high tensile assembly

$0.77

These high tensile purlin bolt assemblies come with a hex head, a hex nut and two washers.

Size

Material

Clear

SKU: KBHHT Categories: Bolts, Nuts & Washers, Hex Head Bolts Tags: Air Conditioning, Building

Description

These high tensile purlin bolt assemblies come with a hex head, a hex nut and two washers.

Features:

Easy to assemble with the right sized spanner
Class 8.8 steel meets Australian structural standards
Zinc plating provides moderate protection against corrosion
Suitable for indoor use

high tensile hex head purlin bolts – quick reference

Code	Size	Specs	Qty
KBHHTGCM120030	M12 x 30mm	HGD – C8.8	150
KBHHTZCM120030	M12 x 30mm	zinc – C8.8	150
KBHHTZCM160030	M16 x 30mm	zinc – C8.8	100
KBHHTZCM160040	M16 x 40mm	zinc – C8.8	100

Additional information

Size	M12 x 30mm, M16 x 30mm, M16 x 40mm
Material	hot-dip galvanised steel – class 8.8, zinc plated steel – class 8.8
