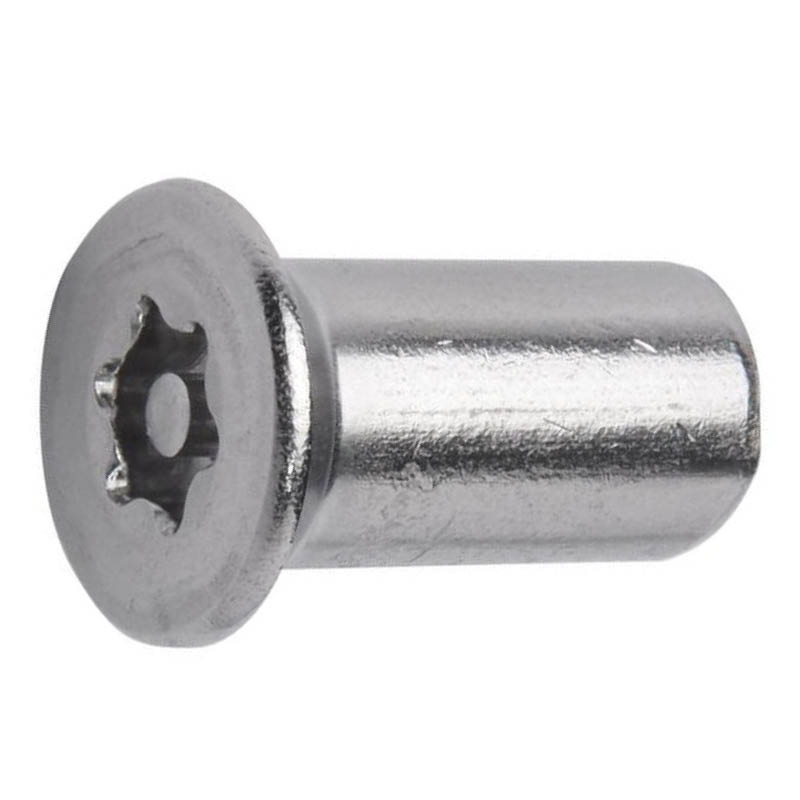

Security barrel nuts - post torx countersunk head photo

Security barrel nuts – post torx countersunk head

$1.44

These security barrel nuts come with a post torx drive and countersunk head. Available in grade 304 and 316 stainless steel and galvanised steel on request.

SKU: RTCN Categories: , Tag:

Description

These security barrel nuts come with a post torx drive and countersunk head. Available in grade 304 and 316 stainless steel and galvanised steel on request.

Features:

  • Can be used with matching threaded rod or bolt
  • Available in grade 304 and 316 stainless steel and galvanised steel on request
  • The countersunk head leaves a safe, smooth finish

Security barrel nuts – post torx countersunk head – quick reference

Code Size Specs Qty
RTCN0412 M04 x 12mm, TX 20 SS 304 100
RTCN0515 M05 x 15mm, TX 25 SS 304 100
RTCN0620 M06 x 20mm, TX 30 SS 304 100
RTCN0820 M08 x 20mm, TX 40 SS 304 100
RTCN1027 M10 x 27mm, TX 50 SS 304 100
RTCN3160412 M04 x 12mm, TX 20 SS 316 100
RTCN3160515 M05 x 15mm, TX 25 SS 316 100
RTCN3160620 M06 x 20mm, TX 30 SS 316 100
RTCN3160820 M08 x 20mm, TX 40 SS 316 100
RTCN3161028 M10 x 28mm, TX 50 SS 316 100

Additional information

Size

M04 x 12mm, TX 20, M05 x 15mm, TX 25, M06 x 20mm, TX 30, M08 x 20mm, TX 40, M10 x 27mm, TX 50, M10 x 28mm, TX 50
Material

stainless steel – grade 304, stainless steel – grade 316
