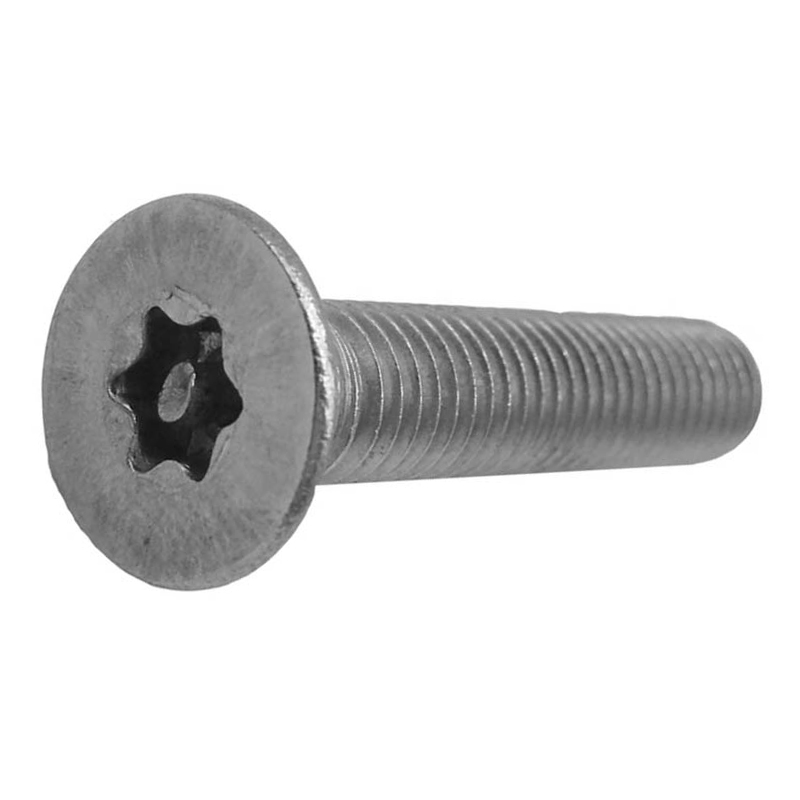

Security socket screws – countersunk head with post torx socket

Name: Security socket screws - countersunk head with post torx socket
SKU: IMS04CT
Availability: InStock

$0.14

These countersunk head security socket screws with post torx socket are designed to sit flush with the surface. They require a matching tool to be installed and removed.

Size

Material

Clear

SKU: IMS04CT Categories: Bolts, Nuts & Washers, Socket Head Bolts

Description

These countersunk head security socket screws with post torx socket are designed to sit flush with the surface. They require a matching tool to be installed and removed.

Features:

Available in stainless steel grade 304 for corrosive environments
These have a 5 lobe design with a solid centre pin making them tamper resistant
Suited for medium torque projects
They can be secured with a nut or screwed into a tapped hole

Security socket screws – quick reference

Code	Size	Specs	Qty
IMS04CTM030006	M03 x 6mm	SS 304	100
IMS04CTM030008	M03 x 8mm	SS 304	100
IMS04CTM030010	M03 x 10mm	SS 304	100
IMS04CTM030012	M03 x 12mm	SS 304	100
IMS04CTM030016	M03 x 16mm	SS 304	100
IMS04CTM030020	M03 x 20mm	SS 304	100
IMS04CTM040006	M04 x 6mm	SS 304	100
IMS04CTM040008	M04 x 8mm	SS 304	100
IMS04CTM040010	M04 x 10mm	SS 304	100
IMS04CTM040012	M04 x 12mm	SS 304	100
IMS04CTM040016	M04 x 16mm	SS 304	100
IMS04CTM040020	M04 x 20mm	SS 304	100
IMS04CTM040025	M04 x 25mm	SS 304	100
IMS04CTM040030	M04 x 30mm	SS 304	100
IMS04CTM040040	M04 x 40mm	SS 304	100
IMS04CTM040050	M04 x 50mm	SS 304	100
IMS04CTM040065	M04 x 65mm	SS 304	100
IMS04CTM040070	M04 x 70mm	SS 304	100
IMS04CTM050008	M05 x 8mm	SS 304	100
IMS04CTM050010	M05 x 10mm	SS 304	100
IMS04CTM050012	M05 x 12mm	SS 304	100
IMS04CTM050016	M05 x 16mm	SS 304	100
IMS04CTM050020	M05 x 20mm	SS 304	100
IMS04CTM050025	M05 x 25mm	SS 304	100
IMS04CTM050030	M05 x 30mm	SS 304	100
IMS04CTM050040	M05 x 40mm	SS 304	100
IMS04CTM050050	M05 x 50mm	SS 304	100
IMS04CTM050060	M05 x 60mm	SS 304	100
IMS04CTM060010	M06 x 10mm	SS 304	100
IMS04CTM060012	M06 x 12mm	SS 304	100
IMS04CTM060016	M06 x 16mm	SS 304	100
IMS04CTM060020	M06 x 20mm	SS 304	100
IMS04CTM060025	M06 x 25mm	SS 304	100
IMS04CTM060030	M06 x 30mm	SS 304	100
IMS04CTM060035	M06 x 35mm	SS 304	100
IMS04CTM060040	M06 x 40mm	SS 304	100
IMS04CTM060045	M06 x 45mm	SS 304	100
IMS04CTM060050	M06 x 50mm	SS 304	100
IMS04CTM060060	M06 x 60mm	SS 304	100
IMS04CTM080016	M08 x 16mm	SS 304	100
IMS04CTM080020	M08 x 20mm	SS 304	100
IMS04CTM080025	M08 x 25mm	SS 304	100
IMS04CTM080030	M08 x 30mm	SS 304	100
IMS04CTM080035	M08 x 35mm	SS 304	100
IMS04CTM080040	M08 x 40mm	SS 304	100
IMS04CTM080060	M08 x 60mm	SS 304	100
IMS04CTM080080	M08 x 80mm	SS 304	100

Security socket screws are sometimes referred to as post pin screws.

Additional information

Size

M03 x 10mm, M03 x 12mm, M03 x 16mm, M03 x 20mm, M03 x 6mm, M03 x 8mm, M04 x 10mm, M04 x 12mm, M04 x 16mm, M04 x 20mm, M04 x 25mm, M04 x 30mm, M04 x 40mm, M04 x 50mm, M04 x 65mm, M04 x 6mm, M04 x 70mm, M04 x 8mm, M05 x 10mm, M05 x 12mm, M05 x 16mm, M05 x 20mm, M05 x 25mm, M05 x 30mm, M05 x 40mm, M05 x 50mm, M05 x 60mm, M05 x 8mm, M06 x 10mm, M06 x 12mm, M06 x 16mm, M06 x 20mm, M06 x 25mm, M06 x 30mm, M06 x 35mm, M06 x 40mm, M06 x 45mm, M06 x 50mm, M06 x 60mm, M08 x 16mm, M08 x 20mm, M08 x 25mm, M08 x 30mm, M08 x 35mm, M08 x 40mm, M08 x 60mm, M08 x 80mm

Material

stainless steel – grade 304
