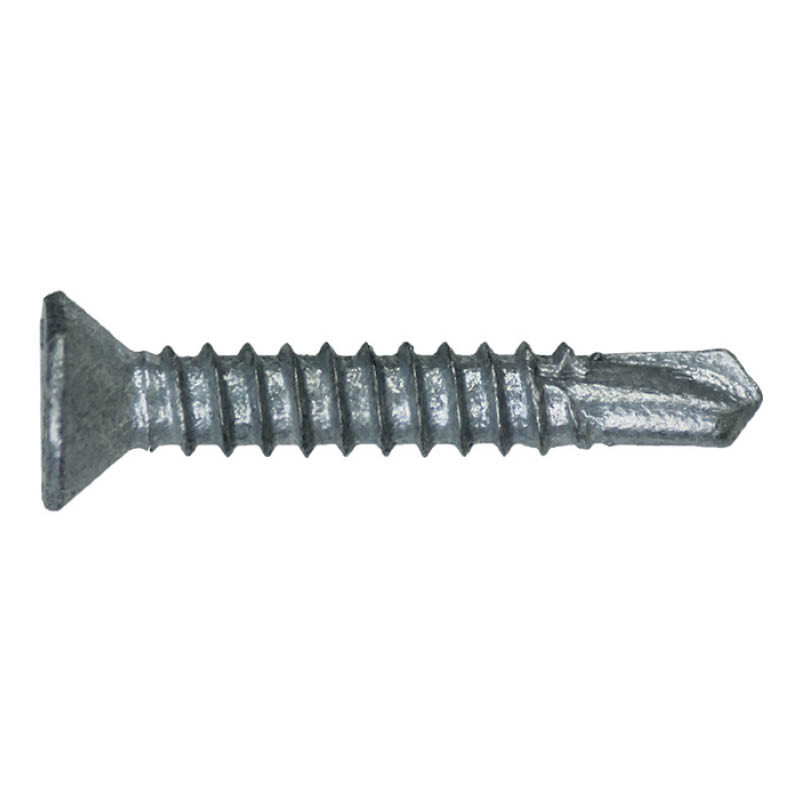

Self drilling screws for metal – phillips countersunk head – drill point

*Request Quote*

These self drilling screws are suitable for use with metal. They have a phillips countersunk head and a drill point. Choose from zinc, gal, grade 304 or 410 stainless steel.

SKU: CSKDP Categories: , Tag:

Description

These self drilling screws are suitable for use with metal. They have a phillips countersunk head and a drill point. Choose from zinc, gal or grade 304 or 410 stainless steel.

Features:

  • Countersunk head for a flush finish
  • Wide variety of sizes available to suit your needs
  • Choose zinc for indoor use and gal for outdoor use

 Self drilling screws for metal – quick reference

Code Size Specs Qty
CSKDPGA0818025 08g-18tpi x 25mm gal – C3 1000
CSKDPGA0818030 08g-18tpi x 30mm gal – C3 1000
CSKDPGA1016030 10g-16tpi x 30mm gal – C3 1000
CSKDPGA1024025 10g-24tpi x 25mm gal – C3 1000
CSKDPGA1024030 10g-24tpi x 30mm gal – C3 1000
CSKDPGA1024040 10g-24tpi x 40mm gal – C3 1000
CSKDPGA1024050 10g-24tpi x 50mm gal – C3 500
CSKDPGA1024065 10g-24tpi x 65mm gal – C3 500
CSKDP0620013 06g-20tpi x 13mm SS 304 1000
CSKDP0620016 06g-20tpi x 16mm SS 304 1000
CSKDP0620019 06g-20tpi x 19mm SS 304 1000
CSKDP0620022 06g-20tpi x 22mm SS 304 1000
CSKDP0620025 06g-20tpi x 25mm SS 304 1000
CSKDP0818013 08g-18tpi x 13mm SS 304 1000
CSKDP0818016 08g-18tpi x 16mm SS 304 1000
CSKDP0818019 08g-18tpi x 19mm SS 304 1000
CSKDP0818022 08g-18tpi x 22mm SS 304 1000
CSKDP0818025 08g-18tpi x 25mm SS 304 1000
CSKDP0818032 08g-18tpi x 32mm SS 304 1000
CSKDP0818038 08g-18tpi x 38mm SS 304 1000
CSKDP0818045 08g-18tpi x 45mm SS 304 1000
CSKDP0818050 08g-18tpi x 50mm SS 304 1000
CSKDP0818060 08g-18tpi x 60mm SS 304 1000
CSKDP1016013 10g-16tpi x 13mm SS 304 1000
CSKDP1016016 10g-16tpi x 16mm SS 304 1000
CSKDP1016019 10g-16tpi x 19mm SS 304 1000
CSKDP1016022 10g-16tpi x 22mm SS 304 1000
CSKDP1016025 10g-16tpi x 25mm SS 304 1000
CSKDP1016032 10g-16tpi x 32mm SS 304 1000
CSKDP1016038 10g-16tpi x 38mm SS 304 1000
CSKDP1016045 10g-16tpi x 45mm SS 304 1000
CSKDP1016050 10g-16tpi x 50mm SS 304 1000
CSKDP1024030 10g-24tpi x 30mm SS 410 1000
CSKDP1024040 10g-24tpi x 40mm SS 410 1000
CSKDP1024050 10g-24tpi x 50mm SS 410 1000
CSKDPZY0620016 06g-20tpi x 16mm zinc yellow 1000
CSKDPZY0620020 06g-20tpi x 20mm zinc yellow 1000
CSKDPZY0620025 06g-20tpi x 25mm zinc yellow 1000
CSKDPZY0620040 06g-20tpi x 40mm zinc yellow 1000
CSKDPZY0818025 08g-18tpi x 25mm zinc yellow 1000
CSKDPZY1016016 10g-16tpi x 16mm zinc yellow 1000
CSKDPZY1016040 10g-16tpi x 40mm zinc yellow 1000
CSKDPZY1024025 10g-24tpi x 25mm zinc yellow 1000
CSKDPZY1024030 10g-24tpi x 30mm zinc yellow 1000
CSKDPZY1024040 10g-24tpi x 40mm zinc yellow 1000
CSKDPZY1024050 10g-24tpi x 50mm zinc yellow 500
CSKDPZY1024065 10g-24tpi x 65mm zinc yellow 500

Additional information

Size

06g-20tpi x 13mm, 06g-20tpi x 16mm, 06g-20tpi x 19mm, 06g-20tpi x 20mm, 06g-20tpi x 22mm, 06g-20tpi x 25mm, 06g-20tpi x 30mm, 06g-20tpi x 40mm, 08g-18tpi x 13mm, 08g-18tpi x 16mm, 08g-18tpi x 19mm, 08g-18tpi x 22mm, 08g-18tpi x 25mm, 08g-18tpi x 30mm, 08g-18tpi x 32mm, 08g-18tpi x 38mm, 08g-18tpi x 45mm, 08g-18tpi x 50mm, 08g-18tpi x 60mm, 10g-16tpi x 13mm, 10g-16tpi x 16mm, 10g-16tpi x 19mm, 10g-16tpi x 22mm, 10g-16tpi x 25mm, 10g-16tpi x 30mm, 10g-16tpi x 32mm, 10g-16tpi x 38mm, 10g-16tpi x 40mm, 10g-16tpi x 45mm, 10g-16tpi x 50mm, 10g-24tpi x 25mm, 10g-24tpi x 30mm, 10g-24tpi x 40mm, 10g-24tpi x 50mm, 10g-24tpi x 65mm
Material

galvanised steel – class 3, stainless steel – grade 304, stainless steel – grade 410, zinc plated steel – yellow/gold
