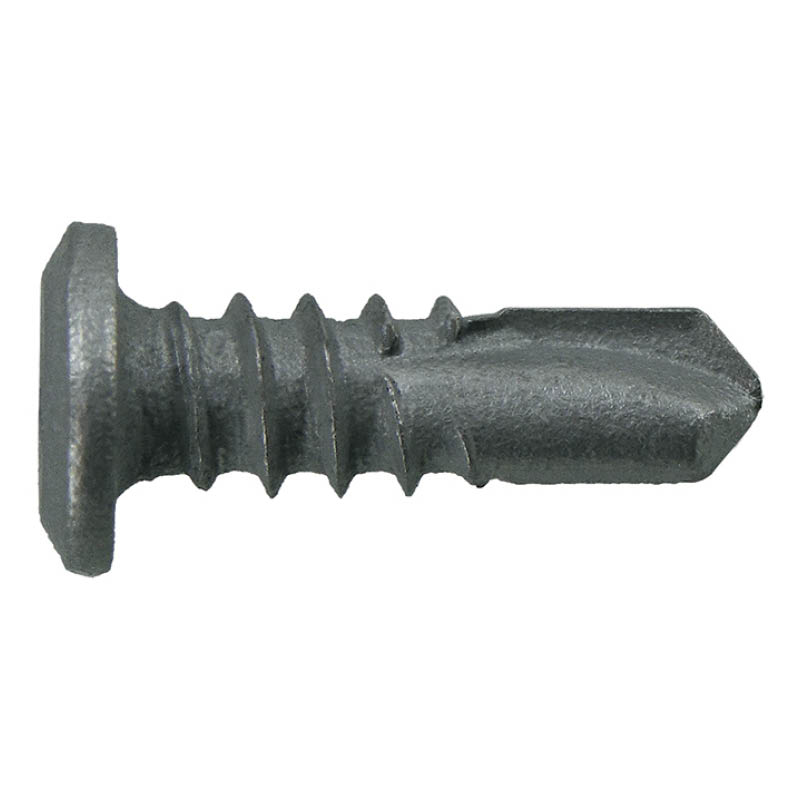

Self drilling screws for metal - phillips wafer head - drill point - photo

Self drilling screws for metal – phillips wafer head – drill point

*Request Quote*

These phillips wafer head self drilling screws are suitable for use with metal. They come in B8 coated steel, bimetal stainless steel grade 304, zinc, class 3 galvanised or 410 stainless steel (1000/box).

SKU: WHDP Categories: , Tag:

Description

These phillips wafer head self drilling screws are suitable for use with metal. They come in B8 coated steel, bimetal stainless steel grade 304, zinc, class 3 galvanised or 410 stainless steel (1000/box).

Features:

  • No need to drill a pilot hole
  • Choose “10-16” sizes for a coarse thread or “10-24” sizes for a fine thread
  • Available in zinc for indoor use, class 3 galvanised steel for outdoors or 410 stainless steel for an aesthetic finish

Wafer head self drilling screws for metal – quick reference

Code Size Specs Qty
WHDPB81016022-MINI 10g-16tpi x 22mm B8 100
WHDPC30818012 08g-18tpi x 12mm gal – C3 1000
WHDPC31016016 10g-16tpi x 16mm gal – C3 1000
WHDPC31016022 10g-16tpi x 22mm gal – C3 1000
WHDPC31016030 10g-16tpi x 30mm gal – C3 1000
WHDPC31016040 10g-16tpi x 40mm gal – C3 1000
WHDPC31016050 10g-16tpi x 50mm gal – C3 1000
WHDPC31024016 10g-24tpi x 16mm gal – C3 1000
WHDPC31024022 10g-24tpi x 22mm gal – C3 1000
WHDPC31024030 10g-24tpi x 30mm gal – C3 1000
WHDPC31024040 10g-24tpi x 40mm gal – C3 1000
WHDPC31024050 10g-24tpi x 50mm gal – C3 1000
WHDP101016016 10g-16tpi x 16mm SS 410 1000
WHDP101016022 10g-16tpi x 22mm SS 410 1000
WHDP101016025 10g-16tpi x 25mm SS 410 1000
WHDP101016030 10g-16tpi x 30mm SS 410 1000
WHDP101024016 10g-24tpi x 16mm SS 410 1000
WHDP101024022 10g-24tpi x 22mm SS 410 1000
WHDP101024030 10g-24tpi x 30mm SS 410 1000
WHDPZY0818012 08g-18tpi x 12mm zinc yellow 1000
WHDPZY1016016 10g-16tpi x 16mm zinc yellow 1000
WHDPZY1016022 10g-16tpi x 22mm zinc yellow 1000
WHDPZY1016030 10g-16tpi x 30mm zinc yellow 1000
WHDPZY1016040 10g-16tpi x 40mm zinc yellow 1000
WHDPZY1024016 10g-24tpi x 16mm zinc yellow 1000
WHDPZY1024022 10g-24tpi x 22mm zinc yellow 1000
WHDPZY1024030 10g-24tpi x 30mm zinc yellow 1000
WHDPZY1024040 10g-24tpi x 40mm zinc yellow 1000

Additional information

Size

08g-18tpi x 12mm, 10g-16tpi x 16mm, 10g-16tpi x 22mm, 10g-16tpi x 25mm, 10g-16tpi x 30mm, 10g-16tpi x 40mm, 10g-16tpi x 50mm, 10g-24tpi x 16mm, 10g-24tpi x 22mm, 10g-24tpi x 30mm, 10g-24tpi x 40mm, 10g-24tpi x 50mm
Material

bimetal stainless steel – grade 304, B8 coated steel, galvanised steel – class 3, stainless steel – grade 410, zinc plated steel – yellow/gold
