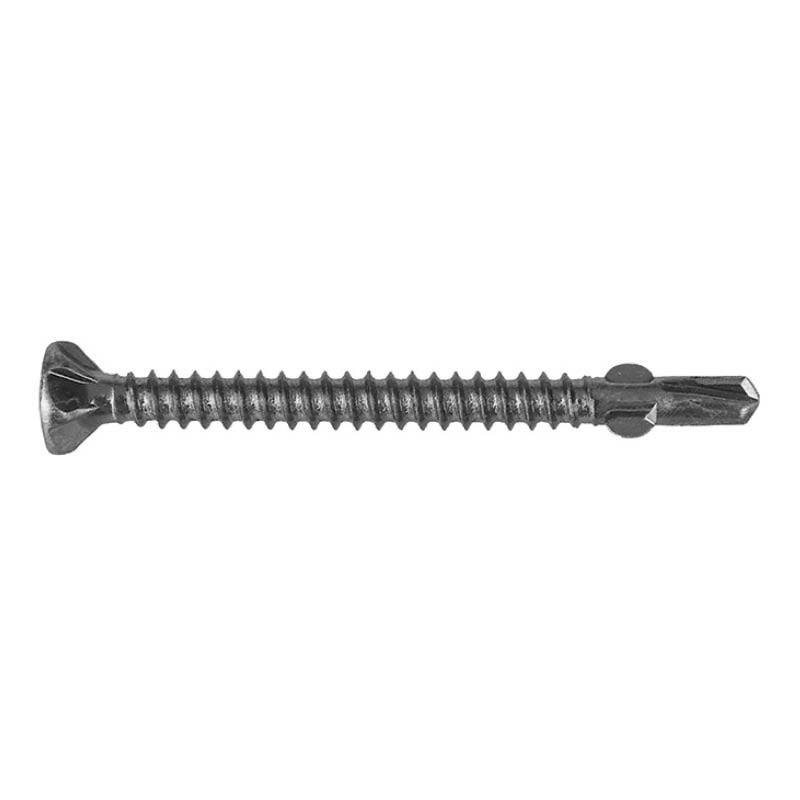

Self drilling screws for metal - phillips countersunk rib head - wing drill point - photo

Self drilling screws for metal – phillips countersunk rib head – wing drill point

*Request Quote*

These self drilling screws have a phillips countersunk rib head and a wing drill point. They are suitable for use with metal.

Size

Material

Clear

SKU: SEHWDP Categories: Screws, Metal Screws Tag: Building

Description

These self drilling screws have a phillips countersunk rib head and a wing drill point. They are suitable for use with metal.

Features:

No pilot hole required
Available in various sizes
Choose zinc plated steel for indoor use class 3 galvanised steel for outdoor use

Self drilling screws for metal – quick reference

Code	Size	Specs	Qty
SEHWDPC306050	06g-20tpi x 50mm	gal – C3	1000
SEHWDPC308032	08g-18tpi x 32mm	gal – C3	1000
SEHWDPC308035	08g-18tpi x 35mm	gal – C3	1000
SEHWDPC310035	10g-16tpi x 35mm	gal – C3	1000
SEHWDPC310040	10g-16tpi x 40mm	gal – C3	1000
SEHWDPC310045	10g-16tpi x 45mm	gal – C3	500
SEHWDPC310050	10g-16tpi x 50mm	gal – C3	1000
SEHWDPC310055	10g-16tpi x 55mm	gal – C3	1000
SEHWDPC310075	10g-16tpi x 75mm	gal – C3	1000
SEHWDPC314065	14g-20tpi x 65mm	gal – C3	1000
SEHWDPZY06050	06g-20tpi x 50mm	zinc yellow	1000
SEHWDPZY08035	08g-18tpi x 35mm	zinc yellow	1000
SEHWDPZY10035	10g-16tpi x 35mm	zinc yellow	500
SEHWDPZY10040	10g-16tpi x 40mm	zinc yellow	500
SEHWDPZY10045	10g-16tpi x 45mm	zinc yellow	500
SEHWDPZY10050	10g-16tpi x 50mm	zinc yellow	500
SEHWDPZY10055	10g-16tpi x 55mm	zinc yellow	1000
SEHWDPZY10070	10g-16tpi x 70mm	zinc yellow	500
SEHWDPZY10075	10g-16tpi x 75mm	zinc yellow	1000
SEHWDPZY14050	14g-20tpi x 50mm	zinc yellow	500
SEHWDPZY14065	14g-20tpi x 65mm	zinc yellow	1000

Additional information

Size	06g-20tpi x 50mm, 08g-18tpi x 32mm, 08g-18tpi x 35mm, 10g-16tpi x 35mm, 10g-16tpi x 40mm, 10g-16tpi x 45mm, 10g-16tpi x 50mm, 10g-16tpi x 55mm, 10g-16tpi x 70mm, 10g-16tpi x 75mm, 14g-20tpi x 50mm, 14g-20tpi x 65mm
Material	galvanised steel – class 3, zinc plated steel – yellow/gold
