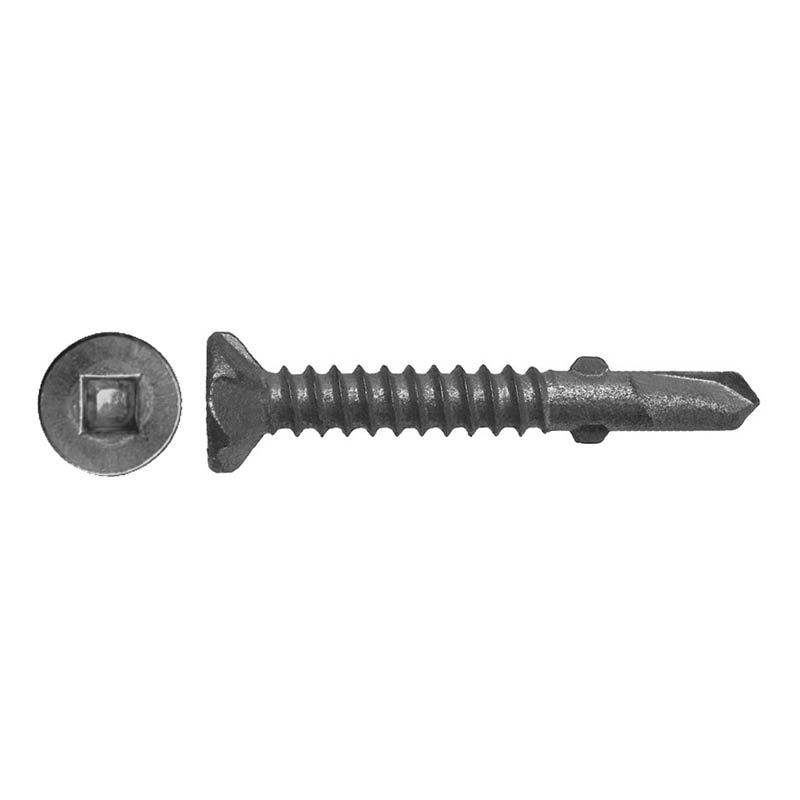

Self drilling screws for metal - square drive countersunk rib head - wing drill point - photo

Self drilling screws for metal – square drive countersunk rib head – wing drill point

$0.04

Square drive wing drill point screws are designed for fixing timber to metal. Choose from class 3 galvanised steel, grade 304 bimetal stainless steel, grade 316, grade 550 stainless steel, B8 or zinc yellow plated steel (1000/box).

SKU: 23 Categories: , Tag:

Description

Square drive wing drill point screws are designed for fixing timber to metal. Choose from class 3 galvanised steel, grade 304 bimetal stainless steel, grade 316, grade 550 stainless steel, B8 or zinc yellow plated steel (1000/box).

Features:

  • No pre-drilling or pilot hole required
  • Wings create a hole in the timber to prevent it from jacking up, then snap off in the metal for fastening in one smooth motion
  • Ribbed countersunk head embeds during drilling to create a flush, professional finish
  • Comes in various sizes to suit your application

Square drive wing drill point screws – quick reference

Code Size Specs Qty
23SWCRQC8100402 10g-16tpi x 40mm B8 500
23-T9PG3RQ0818032 08g-18tpi x 32mm gal – C3 1000
23-T9PG3RQ0818040 08g-18tpi x 40mm gal – C3 1000
23-T9PG3RQ1016035 10g-16tpi x 35mm gal – C3 1000
23-T9PG3RQ1016040 10g-16tpi x 40mm gal – C3 1000
23-T9PG3RQ1016045 10g-16tpi x 45mm gal – C3 1000
23-T9PG3RQ1016050 10g-16tpi x 50mm gal – C3 1000
23-T9PG3RQ1016060 10g-16tpi x 60mm gal – C3 500
23-T9PG3RQ1214045 12g-14tpi x 45mm gal – C3 1000
23-SWRC6100452 10g-16tpi x 45mm bimetal SS 304 500
23SS3AB1045 10g-16tpi x 45mm SS 316 1000
23SS5AB1045 10g-16tpi x 45mm SS 550 1000
23-T9PGYRQ1016030 10g-16tpi x 30mm zinc yellow 1000
23-T9PGYRQ1016035 10g-16tpi x 35mm zinc yellow 1000
23-T9PGYRQ1016040 10g-16tpi x 40mm zinc yellow 1000
23-T9PGYRQ1016045 10g-16tpi x 45mm zinc yellow 500
23-T9PGYRQ1016050 10g-16tpi x 50mm zinc yellow 500
23-T9PGYRQ1016060 10g-16tpi x 60mm zinc yellow 500
23-T9PGYRQ1016070 10g-16tpi x 70mm zinc yellow 500

Additional information

Size

08g-18tpi x 32mm, 08g-18tpi x 40mm, 10g-16tpi x 30mm, 10g-16tpi x 35mm, 10g-16tpi x 40mm, 10g-16tpi x 45mm, 10g-16tpi x 50mm, 10g-16tpi x 60mm, 10g-16tpi x 70mm, 12g-14tpi x 45mm
Material

bimetal stainless steel – grade 304, B8 coated steel, galvanised steel – class 3, stainless steel – grade 316, stainless steel – grade 550, zinc plated steel – yellow/gold
