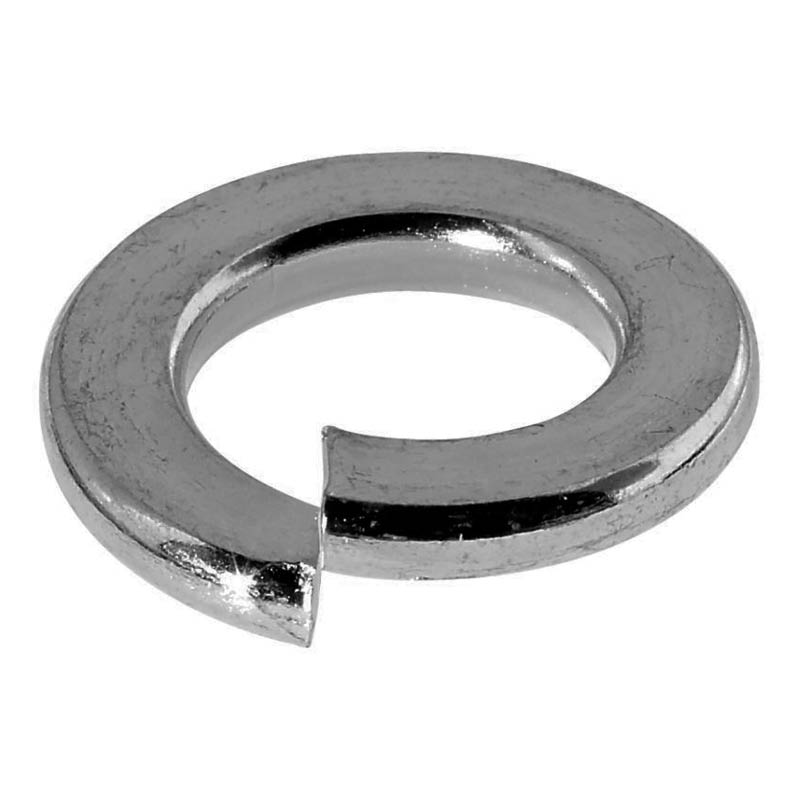

Spring washers - photo

Spring washers

*Request Quote*

Spring washers help to prevent fasteners from loosening. They are available in zinc, gal and grade 304 or 316 stainless steel.

SKU: SWHF Categories: , Tag:

Description

Spring washers help to prevent fasteners from loosening. They are available in zinc, gal and grade 304 or 316 stainless steel.

Features:

  • Provides a compensating spring force
  • Suitable for use where vibrations may cause the fastener to loosen
  • Available in sizes M2 to M36
  • Choose zinc for indoor use, gal for outdoor use and stainless steel for highly corrosive environments

Spring washers – quick reference

Code Size Specs Qty
SWHFGM0600HP M06 x 11.8 x 1.6mm HDG 200
SWHFGM0801HP M8 x 14.8 x 2.0mm HDG 200
SWHFGM1002HP M10 x 18.1 x 2.2mm HDG 200
SWHFGM1203HP M12 x 21.1 x 2.5mm HDG 200
SWHFGM1604HP M16 x 27.4 x 3.5mm HDG 200
SWHFGM2005HP M20 x 33.6 x 4.0mm HDG 100
SWHFGM2406HP M24 x 40.0 x 7.0mm HDG 100
SWHFGM3007HP M30 x 48.2 x 8.0mm HDG 25
SWHFGM3610HP M36 x 58.2 x 10.0mm HDG 25
SWHF304SSM02.5 M2.5 x 5.10 x 0.60mm SS 304 200
SWHF304SSM04 M4 x 7.6 x 0.9mm SS 304 200
SWHF304SSM05 M5 x 9.2 x 1.2mm SS 304 200
SWHF304SSM02 M02 x 4.4 x 0.50mm SS 304 200
SWHF304SSM03 M03 x 6.2 x 0.80mm SS 304 200
SWHF304SSM04 M04 x 7.6 x 0.9mm SS 304 200
SWHF304SSM05 M05 x 9.2 x 1.2mm SS 304 200
SWHF304SSM06 M6 x 11.8 x 1.6mm SS 304 100
SWHF304SSM08 M8 x 14.8 x 2.0mm SS 304 100
SWHF304SSM10 M10 x 18.1 x 2.2mm SS 304 100
SWHF304SSM12 M12 x 21.1 x 2.5mm SS 304 100
SWHF304SSM14 M14 x 24.1 x 3.0mm SS 304 100
SWHF304SSM16 M16 x 27.4 x 3.5mm SS 304 100
SWHF304SSM20 M20 x 33.6 x 4.0mm SS 304 100
SWHF316SSM02 M02 x 4.4 x 0.50mm SS 316 200
SWHF316SSM02.5 M2.5 x 5.10 x 0.60mm SS 316 200
SWHF316SSM03 M03 x 6.2 x 0.80mm SS 316 200
SWHF316SSM04 M4 x 7.6 x 0.9mm SS 316 200
SWHF316SSM05 M5 x 9.2 x 1.2mm SS 316 200
SWHF316SSM06 M6 x 11.8 x 1.6mm SS 316 100
SWHF316SSM08 M8 x 14.8 x 2.0mm SS 316 100
SWHF316SSM10 M10 x 18.1 x 2.2mm SS 316 100
SWHF316SSM12 M12 x 21.1 x 2.5mm SS 316 100
SWHF316SSM14 M14 x 24.1 x 3.0mm SS 316 100
SWHF316SSM16 M16 x 27.4 x 3.5mm SS 316 100
SWHF316SSM18 M18 x 29.40 x 3.50mm SS 316 100
SWHF316SSM20 M20 x 33.6 x 4.0mm SS 316 100
SWHF316SSM22 M22 x 35.90 x 4.0mm SS 316 50
SWHF316SSM24 M24 x 40.0 x 5.0mm SS 316 50
SWHF316SSM27 M27 x 43.00 x 5.0mm SS 316 25
SWHF316SSM30 M30 x 48.2 x 6.0mm SS 316 20
SWHF316SSM33 M33 x 55.20 x 6.0mm SS 316 25
SWHF316SSM36 M36 x 58.2 x 10.0mm SS 316 25
SWHFZM0301HP M03 x 6.2 x 0.8mm Zinc – clear/silver 200
SWHFZM0401HP M04 x 7.6 x 1.5mm Zinc – clear/silver 200
SWHFZM0509HP M05 x 1.8 x 1.2mm Zinc – clear/silver 200
SWHFZM0501HP M5 x 9.2 x 1.2mm Zinc – clear/silver 200
SWHFZM0601HP M6 x 11.8 x 1.6mm Zinc – clear/silver 200
SWHFZM0801HP M8 x 14.8 x 2.0mm Zinc – clear/silver 200
SWHFZM1002HP M10 x 18.1 x 2.2mm Zinc – clear/silver 200
SWHFZM1204HP M12 x 21.1 x 2.5mm Zinc – clear/silver 200
SWHFZM1403HP M14 x 24.1 x 3.0mm Zinc – clear/silver 200
SWHFZM1603HP M16 x 27.4 x 3.5mm Zinc – clear/silver 200
SWHFZM1803HP M18 x 29.40 x 3.50mm Zinc – clear/silver 50
SWHFZM2004HP M20 x 33.6 x 4.0mm Zinc – clear/silver 100
SWHFZM2405HP M24 x 40.0 x 5.0mm Zinc – clear/silver 100
SWHFZY0501HP M05 x 9.2 x 1.2mm Zinc -yellow/gold 200

Additional information

Size

M02 x 4.4 x 0.50mm, M03 x 6.2 x 0.80mm, M03 x 6.2 x 0.8mm, M04 x 7.6 x 0.9mm, M04 x 7.6 x 1.5mm, M05 x 1.8 x 1.2mm, M05 x 9.2 x 1.2mm, M06 x 11.8 x 1.6mm, M08 x 14.8 x 2.0mm, M10 x 18.1 x 2.2mm, M12 x 21.1 x 2.5mm, M14 x 24.1 x 3.0mm, M16 x 27.4 x 3.5mm, M18 x 29.40 x 3.50mm, M2.5 x 5.10 x 0.60mm, M20 x 33.6 x 4.0mm, M22 x 35.90 x 4.0mm, M24 x 40.0 x 5.0mm, M24 x 40.0 x 7.0mm, M27 x 43.00 x 5.0mm, M30 x 48.2 x 6.0mm, M30 x 48.2 x 8.0mm, M33 x 55.20 x 6.0mm, M36 x 58.2 x 10.0mm
Material

hot-dip galvanised steel, stainless steel – grade 304, stainless steel – grade 316, zinc plated steel – clear/silver, zinc plated steel – yellow/gold
