Description

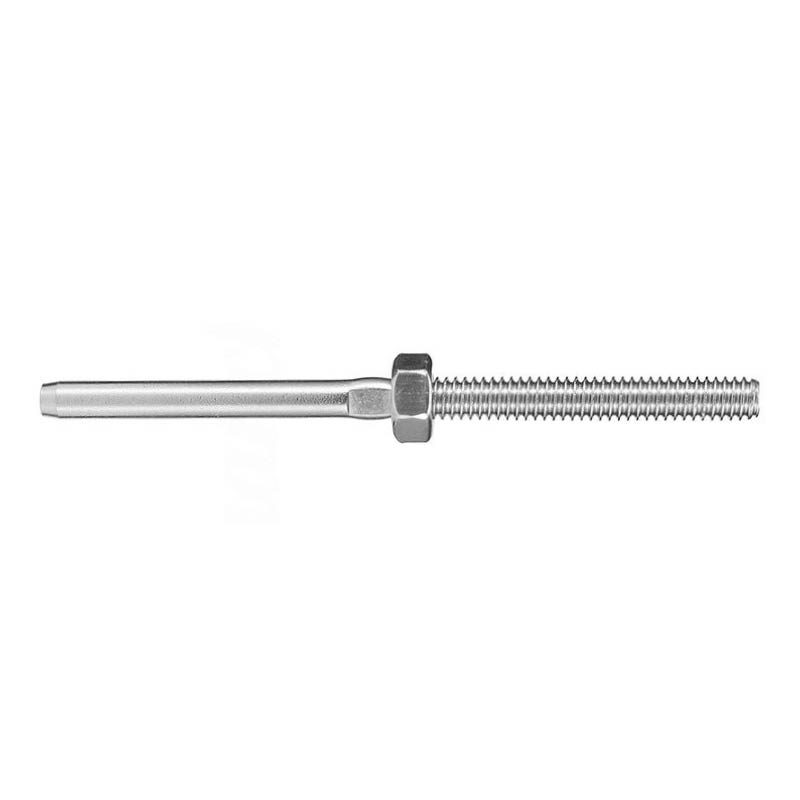

These swage terminals come with a stud and lock nut on one end. They are made from grade 316 stainless steel and are suitable for use with 3.2mm wire.
Features:
- Use with wire rope and balustrade systems
- Available in sizes M5 to M16
- Stud and lock nut for easy attachment to compatible fasteners
- Grade 316 stainless steel provides superior resistance to rust in highly corrosive environment such as coastal areas
Swage terminals – quick reference
| Code | Size | Specs | Qty |
| HTS16SLM0503.2 | M05, for 3.2mm wire, left thread | SS 316 | 1 |
| HTS16SLM0603.2 | M06, for 3.2mm wire, left thread | SS 316 | 1 |
| HTS16SLM0604.0 | M06, for 4.0mm wire, left thread | SS 316 | 5 |
| HTS16STM0502.5 | M05, for 2.5mm wire, right thread | SS 316 | 1 |
| HTS16STM0503.2 | M05, for 3.2mm wire, right thread | SS 316 | 1 |
| HTS16STM0602.5 | M06, for 2.5mm wire, right thread | SS 316 | 1 |
| HTS16STM0603.2 | M06, for 3.2mm wire, right thread | SS 316 | 1 |
| HTS16STM0604.0 | M06, for 4.0mm wire, right thread | SS 316 | 1 |
| HTS16STM0805.0 | M08, for 5.0mm wire, right thread | SS 316 | 1 |
| HTS16STM1006.0 | M10, for 6.0mm wire, right thread | SS 316 | 1 |
| HTS16STM1206.0 | M12, for 6.0mm wire, right thread | SS 316 | 1 |
| HTS16STM1208.0 | M12, for 8.0mm wire, right thread | SS 316 | 1 |
| HTS16STM1608.0 | M16, for 8.0mm wire, right thread | SS 316 | 1 |
| HTS16STM1610.0 | M16, for 10.0mm wire, right thread | SS 316 | 1 |
| HTS16STM1612.0 | M16, for 12.0mm wire, right thread | SS 316 | 1 |
