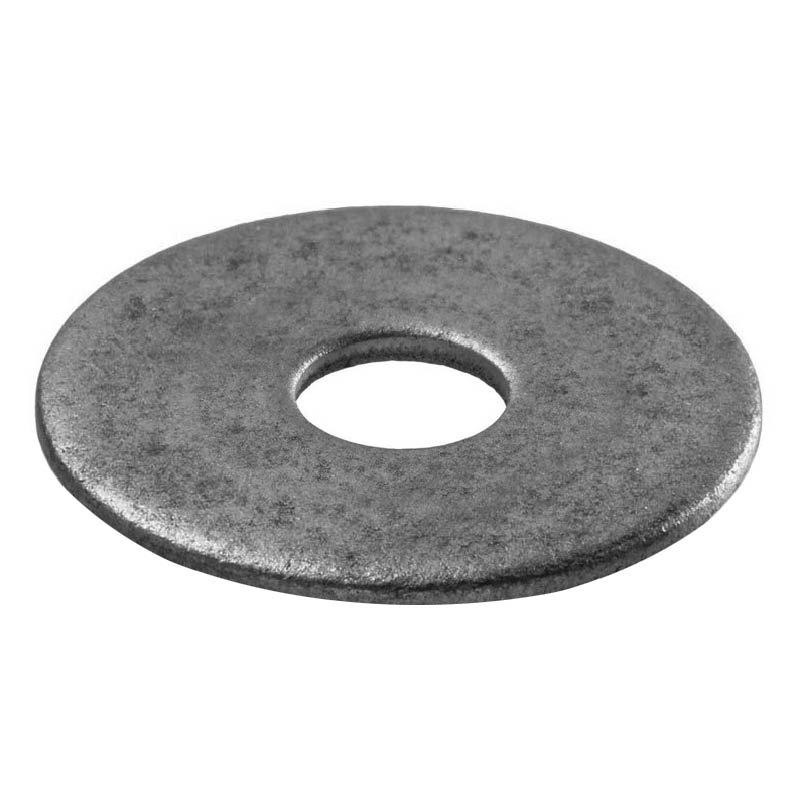

Washers – mudguard

$0.06$2.66

Mudguard washers have a large outside diameter to distribute pressure over a larger surface area to protect softer materials. Available in sizes M5 to M20.

Clear
SKU: WR3 Categories: ,

Description

Mudguard washers have a large outside diameter to distribute pressure over a larger surface area to protect softer materials. Available in sizes M5 to M20.

Features:

  • Flat, round shape
  • Often used in channel/strut fastening applications
  • Available in grade 304 and 316 stainless steel for superior resistance to corrosion, even in highly corrosive environments such as coastal areas

Mudguard washers – quick reference

Code Size Specs Qty
WR304MM05 M5 x 15 x 1.2mm SS 304 100
WR304MM06 M6 x 18 x 1.6mm SS 304 100
WR304MM08 M8 x 24 x 2.0mm SS 304 100
WR304MM10 M10 x 30 x 2.5mm SS 304 100
WR304MM12 M12 x 37 x 3.0mm SS 304 100
WR304MM16 M16 x 50 x 3.0mm SS 304 50
WR304MM20 M20 x 60 x 4.0mm SS 304 50
WR316MM05 M5 x 15 x 1.2mm SS 316 100
WR316MM06 M6 x 18 x 1.6mm SS 316 100
WR316MM08 M8 x 24 x 2.0mm SS 316 100
WR316MM10 M10 x 30 x 2.5mm SS 316 100
WR316MM12 M12 x 37 x 3.0mm SS 316 100
WR316MM16 M16 x 50 x 3.0mm SS 316 100

Additional information

Size

M05 x 15 x 1.2mm, M06 x 18 x 1.6mm, M08 x 24 x 2.0mm, M10 x 30 x 2.5mm, M12 x 37 x 3.0mm, M16 x 50 x 3.0mm, M20 x 60 x 4.0mm

Material

stainless steel – grade 304, stainless steel – grade 316
