Name: Alpha hand taps - coarse - bottoming
Brand: Alpha
SKU: MCHB
Availability: InStock

Description

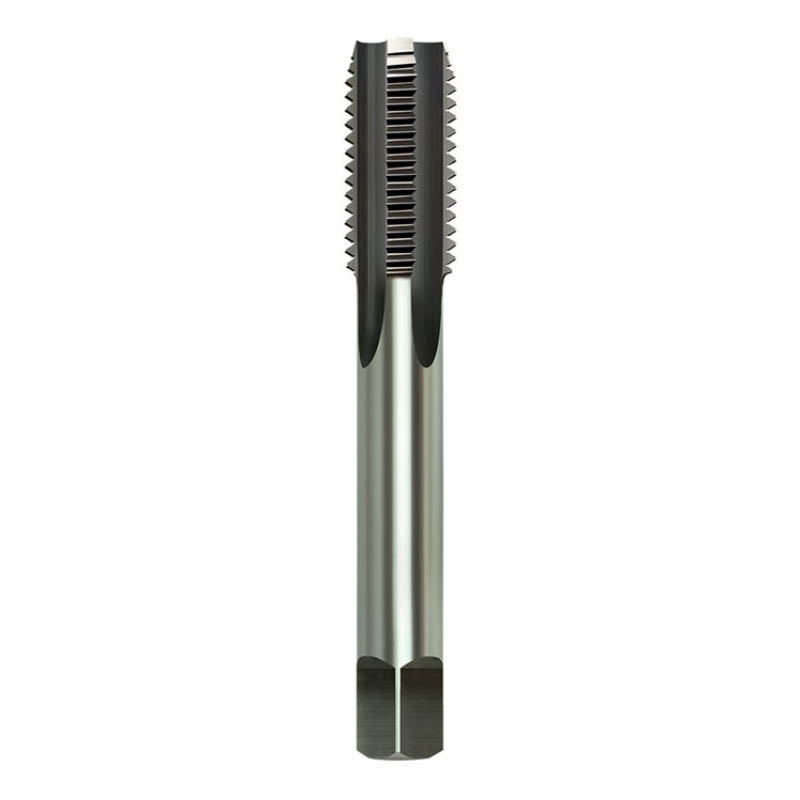

Alpha coarse bottoming taps are general purpose taps suitable for hand and machine operation. They have 2N tolerance for optimum thread fit and are designed to use in steel, aluminium, copper and brass.

Features:

Suitable for use in steel, aluminium, copper, brass etc
Offering a continuous cutting edge with almost no taper
Usually used to cut threads to the bottom of a blind hole

Coarse bottoming taps – quick reference

Code	Size	Specs	Qty
MCHB020	M02 x 0.40mm	HSS	5
MCHB025	M02.5 x 0.45mm	HSS	5
MCHB030	M03 x 0.50mm	HSS	5
MCHB035	M03.5 x 0.6mm	HSS	5
MCHB040	M04 x 0.7mm	HSS	5
MCHB045	M04.5 x 0.75mm	HSS	5
MCHB050	M05 x 0.80mm	HSS	5
MCHB060	M06 x 1.00mm	HSS	5
MCHB070	M07 x 1.00mm	HSS	5
MCHB080	M08 x 1.25mm	HSS	5
MCHB090	M09 x 1.25mm	HSS	5
MCHB100	M10 x 1.50mm	HSS	5
MCHB120	M12 x 1.75mm	HSS	5
MCHB140	M14 x 2.00mm	HSS	5
MCHB160	M16 x 2.00mm	HSS	5
MCHB180	M18 x 2.50mm	HSS	5
MCHB200	M20 x 2.50mm	HSS	5
MCHB220	M22 x 2.50mm	HSS	5
MCHB240	M24 x 3.00mm	HSS	5
MCHB300	M30 x 3.50mm	HSS	5
MCHB330	M33 x 3.50mm	HSS	5
MCHB360	M36 x 4.00mm	HSS	5

Additional information

Size	M02 x 0.40mm, M02.5 x 0.45mm, M03 x 0.50mm, M03.5 x 0.6mm, M04 x 0.7mm, M04.5 x 0.75mm, M05 x 0.80mm, M06 x 1.00mm, M07 x 1.00mm, M08 x 1.25mm, M09 x 1.25mm, M10 x 1.50mm, M12 x 1.75mm, M14 x 2.00mm, M16 x 2.00mm, M18 x 2.50mm, M20 x 2.50mm, M22 x 2.50mm, M24 x 3.00mm, M30 x 3.50mm, M33 x 3.50mm, M36 x 4.00mm
