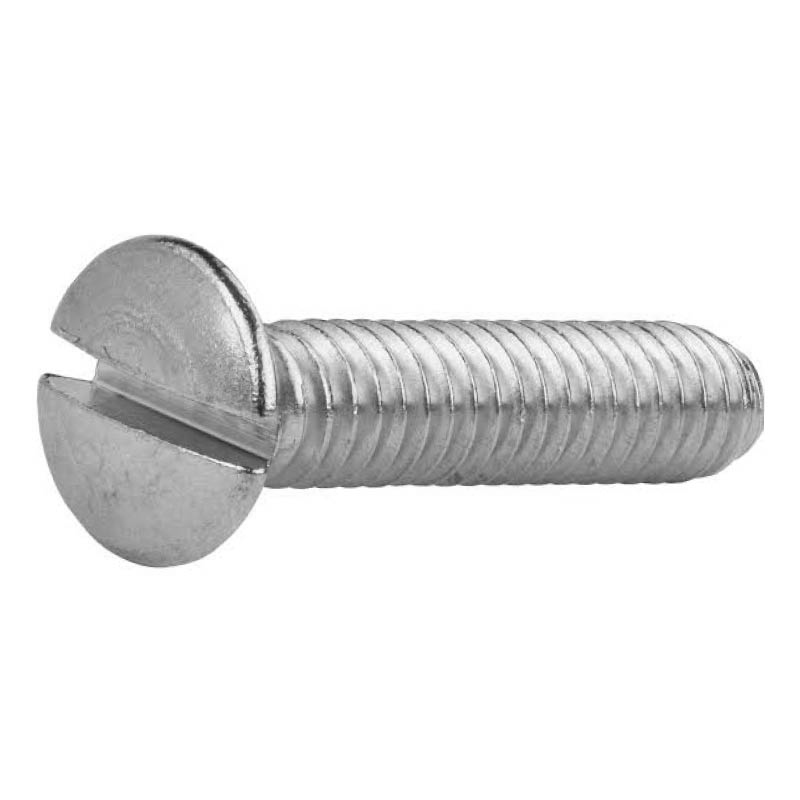

Metal thread screws – slotted countersunk head

Name: Metal thread screws - slotted countersunk head
SKU: MS0
Availability: InStock

$0.06

Metal thread screws with countersunk head and slotted drive are designed to suit applications where there is a threaded hole. Best suited for flush finish projects such as brackets and hinges.

Size

Material

Clear

SKU: MS0 Categories: Bolts, Nuts & Washers, Metal Thread Screws

Description

Metal thread screws with countersunk head and slotted drive are designed to suit applications where there is a threaded hole. Best suited for flush finish projects such as brackets and hinges.

Features:

These machine screws come in grade 304 & grade 316 stainless steel, zinc and brass
A wide variety of sizes and lengths are available
These have a slotted drive for use with suitable screwdriver
The countersunk head provides a flush level finish

Metal thread screws – quick reference

Code	Size	Specs	Qty
MS0BRPCSM040006	M04 x 06mm	brass	100
MS0BRPCSM040008	M04 x 08mm	brass	100
MS0BRPCSM040010	M04 x 10mm	brass	100
MS0BRPCSM040012	M04 x 12mm	brass	100
MS0BRPCSM040016	M04 x 16mm	brass	100
MS0BRPCSM040020	M04 x 20mm	brass	100
MS0BRPCSM040025	M04 x 25mm	brass	100
MS0BRPCSM040030	M04 x 30mm	brass	100
MS0BRPCSM040040	M04 x 40mm	brass	100
MS0BRPCSM040050	M04 x 50mm	brass	100
MS0BRPCSM050010	M05 x 10mm	brass	100
MS0BRPCSM050012	M05 x 12mm	brass	100
MS0BRPCSM050016	M05 x 16mm	brass	100
MS0BRPCSM050020	M05 x 20mm	brass	100
MS0BRPCSM050025	M05 x 25mm	brass	100
MS0BRPCSM050030	M05 x 30mm	brass	100
MS0BRPCSM050040	M05 x 40mm	brass	100
MS0BRPCSM050050	M05 x 50mm	brass	100
MS0BRPCSM060010	M06 x 10mm	brass	100
MS0BRPCSM060012	M06 x 12mm	brass	100
MS0BRPCSM060016	M06 x 16mm	brass	100
MS0BRPCSM060020	M06 x 20mm	brass	100
MS0BRPCSM060025	M06 x 25mm	brass	100
MS0BRPCSM060030	M06 x 30mm	brass	100
MS0BRPCSM060040	M06 x 40mm	brass	100
MS0BRPCSM060050	M06 x 50mm	brass	100
MS04CSM030030	M03 x 30mm	SS 304	200
MS04CSM030040	M03 x 40mm	SS 304	200
MS04CSM040008	M04 x 08mm	SS 304	200
MS04CSM040010	M04 x 10mm	SS 304	200
MS04CSM040012	M04 x 12mm	SS 304	200
MS04CSM040020	M04 x 20mm	SS 304	200
MS04CSM040025	M04 x 25mm	SS 304	200
MS04CSM040030	M04 x 30mm	SS 304	200
MS04CSM040040	M04 x 40mm	SS 304	200
MS04CSM040050	M04 x 50mm	SS 304	200
MS04CSM050010	M05 x 10mm	SS 304	100
MS04CSM050012	M05 x 12mm	SS 304	100
MS04CSM050016	M05 x 16mm	SS 304	100
MS04CSM050020	M05 x 20mm	SS 304	100
MS04CSM050025	M05 x 25mm	SS 304	100
MS04CSM050030	M05 x 30mm	SS 304	100
MS04CSM050035	M05 x 35mm	SS 304	100
MS04CSM050040	M05 x 40mm	SS 304	100
MS04CSM050045	M05 x 45mm	SS 304	100
MS04CSM050050	M05 x 50mm	SS 304	100
MS04CSM050060	M05 x 60mm	SS 304	100
MS04CSM050065	M05 x 65mm	SS 304	100
MS04CSM050070	M05 x 70mm	SS 304	100
MS04CSM060010	M06 x 10mm	SS 304	100
MS04CSM060012	M06 x 12mm	SS 304	100
MS04CSM060016	M06 x 16mm	SS 304	100
MS04CSM060020	M06 x 20mm	SS 304	100
MS04CSM060025	M06 x 25mm	SS 304	100
MS04CSM060030	M06 x 30mm	SS 304	100
MS04CSM060035	M06 x 35mm	SS 304	100
MS04CSM060040	M06 x 40mm	SS 304	100
MS04CSM060045	M06 x 45mm	SS 304	100
MS04CSM060050	M06 x 50mm	SS 304	100
MS04CSM060060	M06 x 60mm	SS 304	100
MS04CSM060065	M06 x 65mm	SS 304	100
MS04CSM060070	M06 x 70mm	SS 304	100
MS016CSM030008	M03 x 08mm	SS 316	100
MS016CSM030010	M03 x 10mm	SS 316	100
MS016CSM030012	M03 x 12mm	SS 316	100
MS016CSM030016	M03 x 16mm	SS 316	100
MS016CSM030020	M03 x 20mm	SS 316	100
MS016CSM030025	M03 x 25mm	SS 316	100
MS016CSM040008	M04 x 08mm	SS 316	100
MS016CSM040010	M04 x 10mm	SS 316	100
MS016CSM040012	M04 x 12mm	SS 316	100
MS016CSM040016	M04 x 16mm	SS 316	100
MS016CSM040020	M04 x 20mm	SS 316	100
MS016CSM040025	M04 x 25mm	SS 316	100
MS016CSM040030	M04 x 30mm	SS 316	100
MS016CSM040040	M04 x 40mm	SS 316	100
MS016CSM040050	M04 x 50mm	SS 316	100
MS016CSM050008	M05 x 08mm	SS 316	100
MS016CSM050010	M05 x 10mm	SS 316	100
MS016CSM050012	M05 x 12mm	SS 316	100
MS016CSM050016	M05 x 16mm	SS 316	100
MS016CSM050020	M05 x 20mm	SS 316	100
MS016CSM050025	M05 x 25mm	SS 316	100
MS016CSM050030	M05 x 30mm	SS 316	100
MS016CSM050040	M05 x 40mm	SS 316	100
MS016CSM050045	M05 x 45mm	SS 316	100
MS016CSM050050	M05 x 50mm	SS 316	100
MS016CSM050060	M05 x 60mm	SS 316	100
MS016CSM050065	M05 x 65mm	SS 316	100
MS016CSM050070	M05 x 70mm	SS 316	100
MS016CSM060010	M06 x 10mm	SS 316	100
MS016CSM060016	M06 x 16mm	SS 316	100
MS016CSM060020	M06 x 20mm	SS 316	100
MS016CSM060030	M06 x 30mm	SS 316	100
MS016CSM060035	M06 x 35mm	SS 316	100
MS016CSM060040	M06 x 40mm	SS 316	100
MS016CSM060045	M06 x 45mm	SS 316	100
MS016CSM060050	M06 x 50mm	SS 316	100
MS016CSM060060	M06 x 60mm	SS 316	100
MS016CSM060065	M06 x 65mm	SS 316	100
MS016CSM060070	M06 x 70mm	SS 316	100
MS0CSZP0406	M04 x 06mm	Zinc – clear/silver	200
MS0CSZP0408	M04 x 08mm	Zinc – clear/silver	200
MS0CSZP0410	M04 x 10mm	Zinc – clear/silver	200
MS0CSZP0412	M04 x 12mm	Zinc – clear/silver	200
MS0CSZP0416	M04 x 16mm	Zinc – clear/silver	200
MS0CSZP0420	M04 x 20mm	Zinc – clear/silver	200
MS0CSZP0425	M04 x 25mm	Zinc – clear/silver	200
MS0CSZP0430	M04 x 30mm	Zinc – clear/silver	200
MS0CSZP0435	M04 x 35mm	Zinc – clear/silver	200
MS0CSZP0440	M04 x 40mm	Zinc – clear/silver	200
MS0CSZP0450	M04 x 50mm	Zinc – clear/silver	200
MS0CSZP0508	M05 x 08mm	Zinc – clear/silver	200
MS0CSZP0510	M05 x 10mm	Zinc – clear/silver	200
MS0CSZP0512	M05 x 12mm	Zinc – clear/silver	200
MS0CSZP0516	M05 x 16mm	Zinc – clear/silver	200
MS0CSZP0520	M05 x 20mm	Zinc – clear/silver	200
MS0CSZP0525	M05 x 25mm	Zinc – clear/silver	200
MS0CSZP0530	M05 x 30mm	Zinc – clear/silver	200
MS0CSZP0540	M05 x 40mm	Zinc – clear/silver	200
MS0CSZP0550	M05 x 50mm	Zinc – clear/silver	200
MS0CSZP0565	M05 x 65mm	Zinc – clear/silver	200
MS0CSZP0575	M05 x 75mm	Zinc – clear/silver	200
MS0CSZP0610	M06 x 10mm	Zinc – clear/silver	200
MS0CSZP0612	M06 x 12mm	Zinc – clear/silver	200
MS0CSZP0616	M06 x 16mm	Zinc – clear/silver	200
MS0CSZP0620	M06 x 20mm	Zinc – clear/silver	200
MS0CSZP0625	M06 x 25mm	Zinc – clear/silver	200
MS0CSZP0630	M06 x 30mm	Zinc – clear/silver	200
MS0CSZP0635	M06 x 35mm	Zinc – clear/silver	200
MS0CSZP0640	M06 x 40mm	Zinc – clear/silver	200
MS0CSZP0650	M06 x 50mm	Zinc – clear/silver	200
MS0CSZP0665	M06 x 65mm	Zinc – clear/silver	100
MS0CSZP0675	M06 x 75mm	Zinc – clear/silver	100
MS0CSZP0812	M08 x 12mm	Zinc – clear/silver	200
MS0CSZP0816	M08 x 16mm	Zinc – clear/silver	200
MS0CSZP0820	M08 x 20mm	Zinc – clear/silver	200
MS0CSZP0825	M08 x 25mm	Zinc – clear/silver	200
MS0CSZP0830	M08 x 30mm	Zinc – clear/silver	200
MS0CSZP0835	M08 x 35mm	Zinc – clear/silver	200
MS0CSZP0840	M08 x 40mm	Zinc – clear/silver	200
MS0CSZP0850	M08 x 50mm	Zinc – clear/silver	200
MS0CSZP0865	M08 x 65mm	Zinc – clear/silver	100
MS0CSZP0875	M08 x 75mm	Zinc – clear/silver	100
MS0CSZP1020	M10 x 20mm	Zinc – clear/silver	100
MS0CSZP1025	M10 x 25mm	Zinc – clear/silver	100
MS0CSZP1030	M10 x 30mm	Zinc – clear/silver	100
MS0CSZP1035	M10 x 35mm	Zinc – clear/silver	100
MS0CSZP1040	M10 x 40mm	Zinc – clear/silver	100
MS0CSZP1050	M10 x 50mm	Zinc – clear/silver	100
MS0CSZP1065	M10 x 65mm	Zinc – clear/silver	50
MS0CSZP1075	M10 x 75mm	Zinc – clear/silver	50
MS0CSZP1225	M12 x 25mm	Zinc – clear/silver	100
MS0CSZP1230	M12 x 30mm	Zinc – clear/silver	100
MS0CSZP1240	M12 x 40mm	Zinc – clear/silver	100
MS0CSZP1250	M12 x 50mm	Zinc – clear/silver	100
MS0CSZP1265	M12 x 65mm	Zinc – clear/silver	50
MS0CSZP1640	M16 x 40mm	Zinc – clear/silver	50
MS0CSZP1650	M16 x 50mm	Zinc – clear/silver	25
MS0CSZP1665	M16 x 65mm	Zinc – clear/silver	25

Metal threads are often referred to as machine screws or bolts.

Additional information

Size

M03 x 08mm, M03 x 10mm, M03 x 12mm, M03 x 16mm, M03 x 20mm, M03 x 25mm, M03 x 30mm, M03 x 40mm, M04 x 06mm, M04 x 08mm, M04 x 10mm, M04 x 12mm, M04 x 16mm, M04 x 20mm, M04 x 25mm, M04 x 30mm, M04 x 35mm, M04 x 40mm, M04 x 50mm, M05 x 08mm, M05 x 10mm, M05 x 12mm, M05 x 16mm, M05 x 20mm, M05 x 25mm, M05 x 30mm, M05 x 35mm, M05 x 40mm, M05 x 45mm, M05 x 50mm, M05 x 60mm, M05 x 65mm, M05 x 70mm, M05 x 75mm, M06 x 10mm, M06 x 12mm, M06 x 16mm, M06 x 20mm, M06 x 25mm, M06 x 30mm, M06 x 35mm, M06 x 40mm, M06 x 45mm, M06 x 50mm, M06 x 60mm, M06 x 65mm, M06 x 70mm, M06 x 75mm, M08 x 12mm, M08 x 16mm, M08 x 20mm, M08 x 25mm, M08 x 30mm, M08 x 35mm, M08 x 40mm, M08 x 50mm, M08 x 65mm, M08 x 75mm, M10 x 20mm, M10 x 25mm, M10 x 30mm, M10 x 35mm, M10 x 40mm, M10 x 50mm, M10 x 65mm, M10 x 75mm, M12 x 25mm, M12 x 30mm, M12 x 40mm, M12 x 50mm, M12 x 65mm, M16 x 40mm, M16 x 50mm, M16 x 65mm

Material

brass, stainless steel – grade 304, stainless steel – grade 316, zinc plated steel – clear/silver
